Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Side Of Engine Compartment

G00475214

Courtesy of AMERICAN HONDA MOTOR CO., INC.

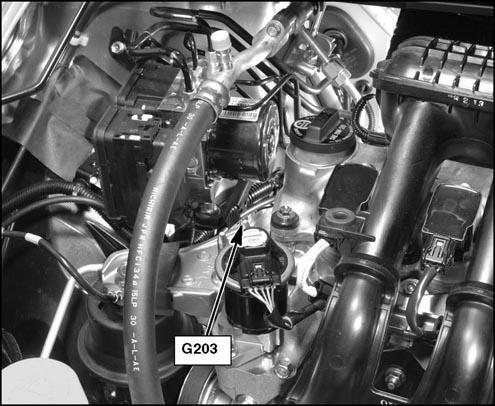

Fig 2: Right Side Of Engine Compartment

G00475215

Courtesy of AMERICAN HONDA MOTOR CO., INC.

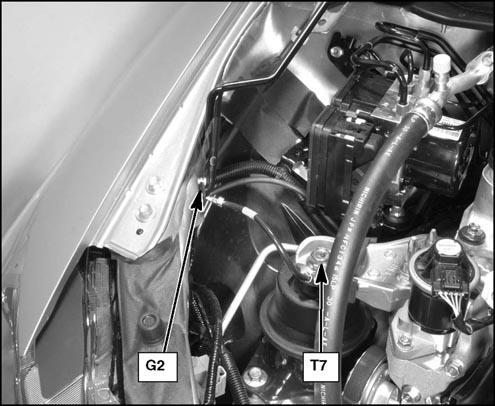

Fig 3: Right Side Of Engine Compartment

G00475216

Courtesy of AMERICAN HONDA MOTOR CO., INC.

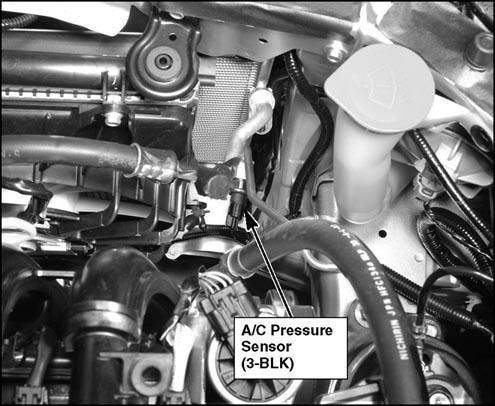

Fig 4: Right Front Of Engine Compartment

G00475217

Courtesy of AMERICAN HONDA MOTOR CO., INC.

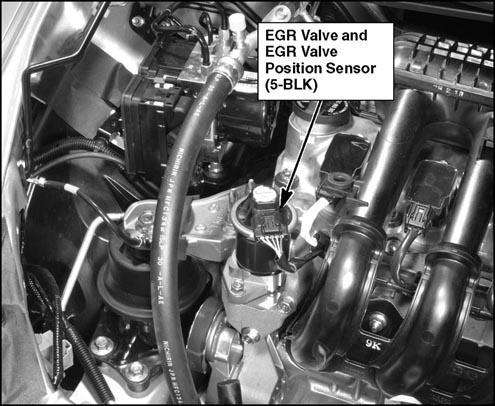

Fig 5: Right Front Of Engine Compartment

G00475218

Courtesy of AMERICAN HONDA MOTOR CO., INC.

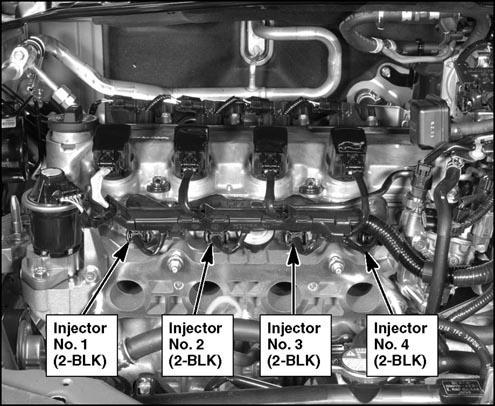

Fig 6: Middle Of Engine

G00475219

Courtesy of AMERICAN HONDA MOTOR CO., INC.

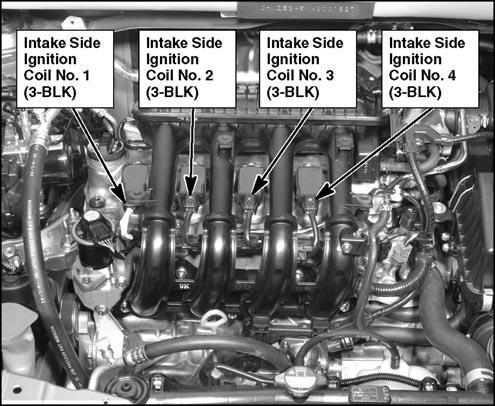

Fig 7: Middle Of Engine

G00475220

Courtesy of AMERICAN HONDA MOTOR CO., INC.

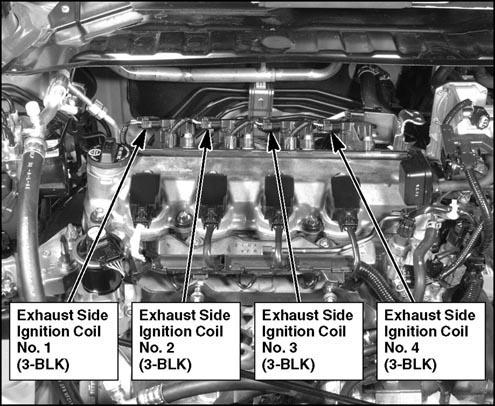

Fig 8: Middle Of Engine

G00475221

Courtesy of AMERICAN HONDA MOTOR CO., INC.

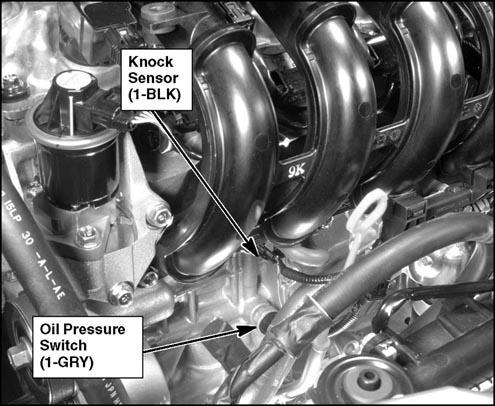

Fig 9: Front Of Engine

G00475222

Courtesy of AMERICAN HONDA MOTOR CO., INC.

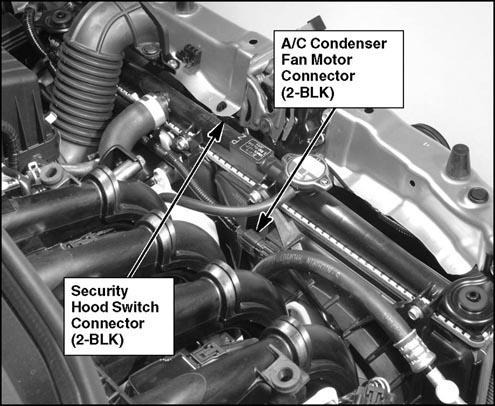

Fig 10: Front Of Engine Compartment

G00475223

Courtesy of AMERICAN HONDA MOTOR CO., INC.

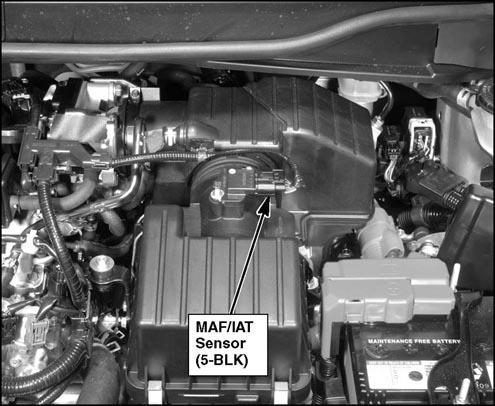

Fig 11: Left Side Of Engine

G00475224

Courtesy of AMERICAN HONDA MOTOR CO., INC.

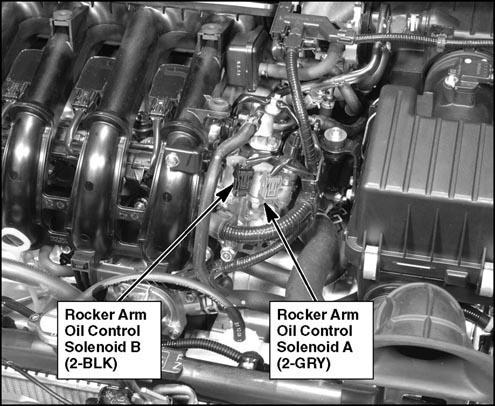

Fig 12: Left Side Of Engine

G00475225

Courtesy of AMERICAN HONDA MOTOR CO., INC.

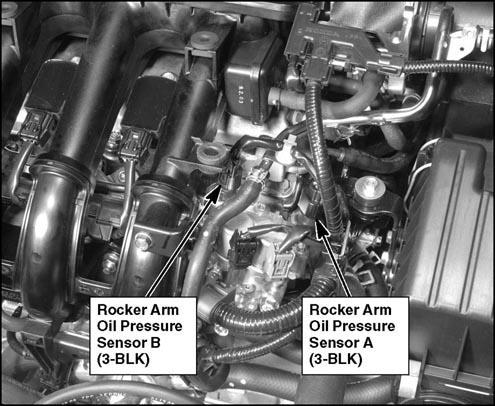

Fig 13: Left Side Of Engine

G00475226

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Left Side Of Engine

G00475227

Courtesy of AMERICAN HONDA MOTOR CO., INC.

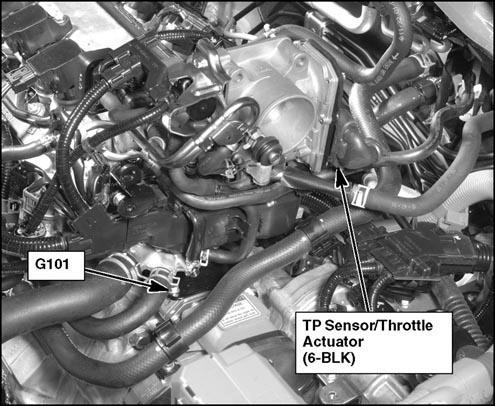

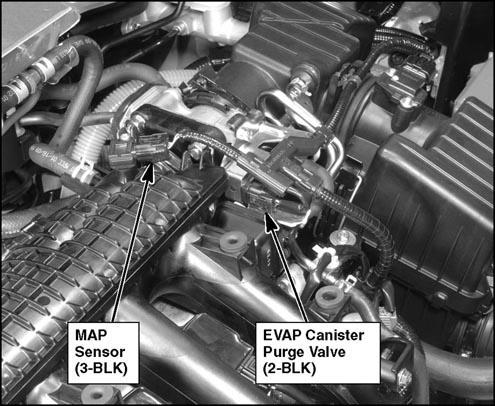

Fig 15: Left Side Of Engine

G00475228

Courtesy of AMERICAN HONDA MOTOR CO., INC.

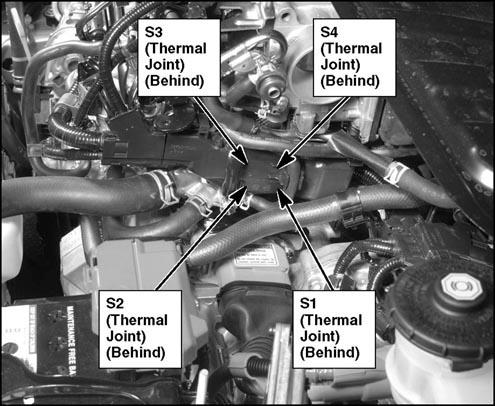

Fig 16: Rear Of Engine

G00475229

Courtesy of AMERICAN HONDA MOTOR CO., INC.

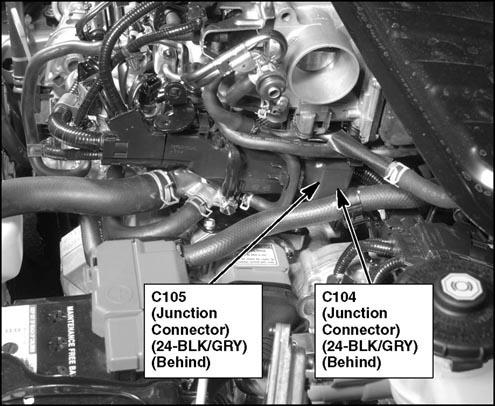

Fig 17: Left Side Of Engine

G00475230

Courtesy of AMERICAN HONDA MOTOR CO., INC.

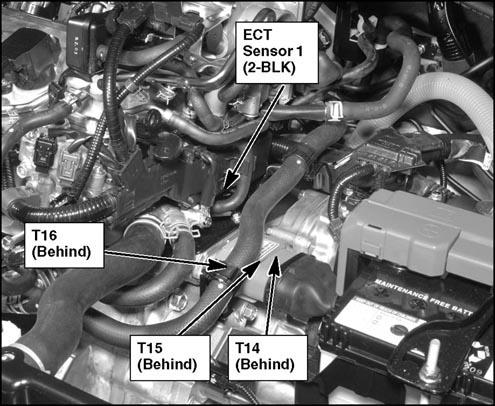

Fig 18: Left Side Of Engine

G00475231

Courtesy of AMERICAN HONDA MOTOR CO., INC.

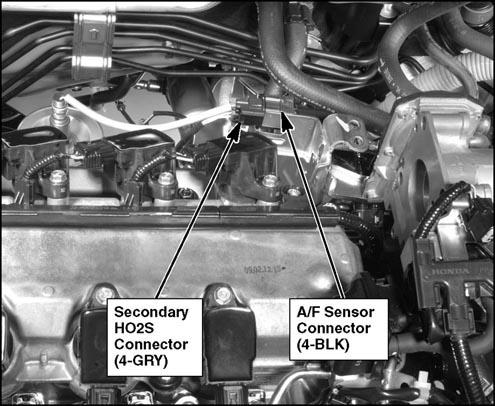

Fig 19: Left Rear Of Engine

G00475232

Courtesy of AMERICAN HONDA MOTOR CO., INC.

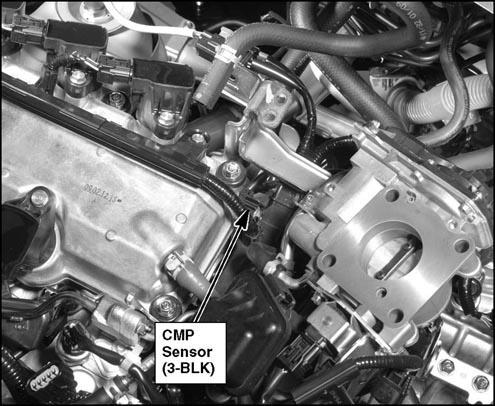

Fig 20: Left Rear Of Engine

G00475233

Courtesy of AMERICAN HONDA MOTOR CO., INC.

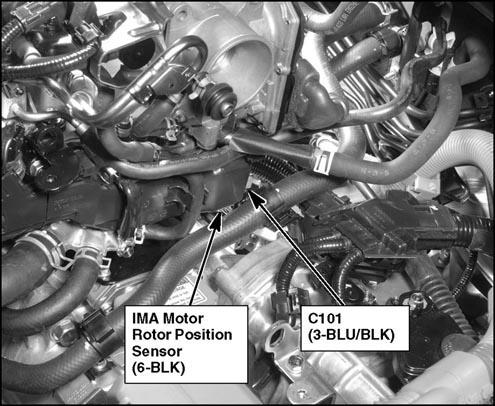

Fig 21: Left Rear Of Engine

G00475234

Courtesy of AMERICAN HONDA MOTOR CO., INC.

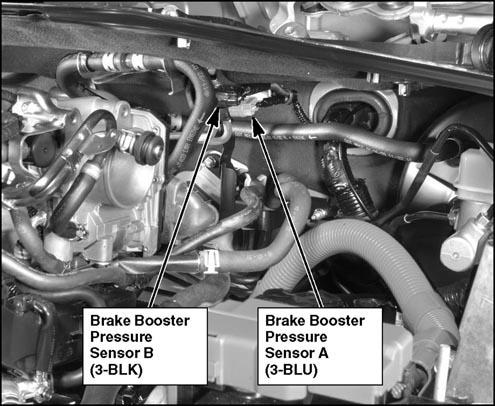

Fig 22: Rear Of Engine Compartment

G00475235

Courtesy of AMERICAN HONDA MOTOR CO., INC.

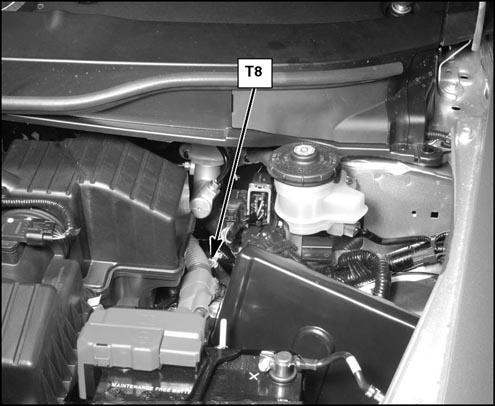

Fig 23: Transmission Housing

G00475236

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 24: Front Of Transmission Housing

G00475237

Courtesy of AMERICAN HONDA MOTOR CO., INC.

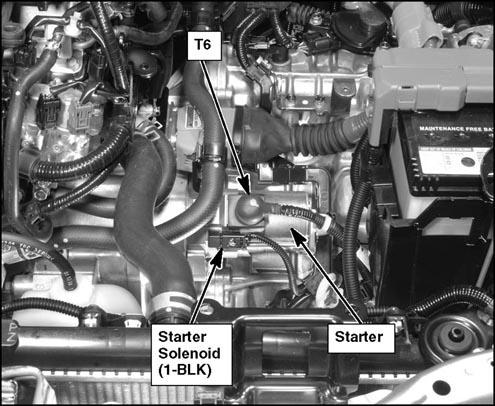

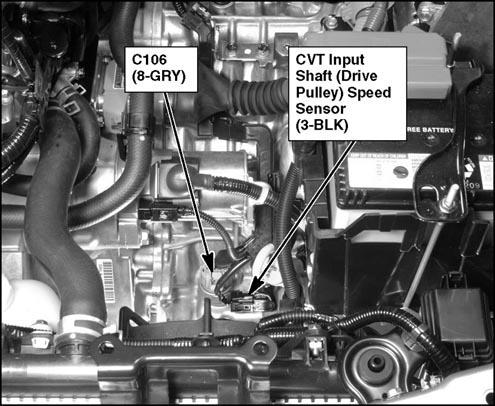

Fig 25: Front Of Transmission Housing

G00475238

Courtesy of AMERICAN HONDA MOTOR CO., INC.

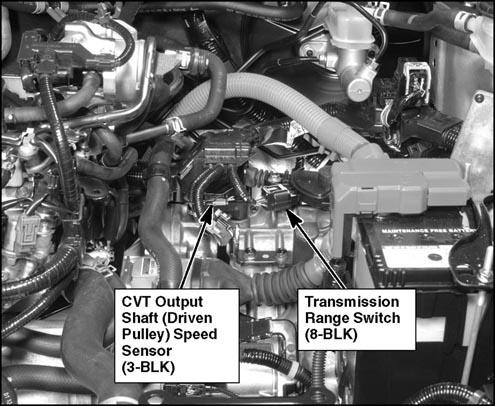

Fig 26: Top Of Transmission

G00475239

Courtesy of AMERICAN HONDA MOTOR CO., INC.

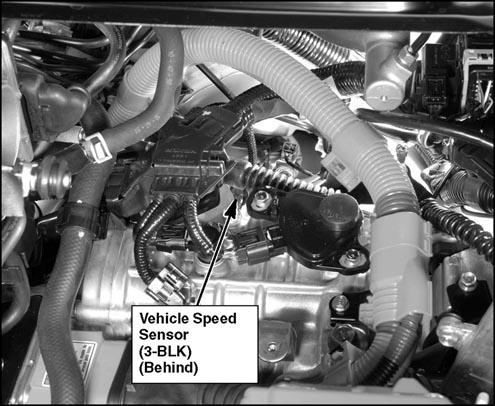

Fig 27: Rear Of Transmission

G00475240

Courtesy of AMERICAN HONDA MOTOR CO., INC.

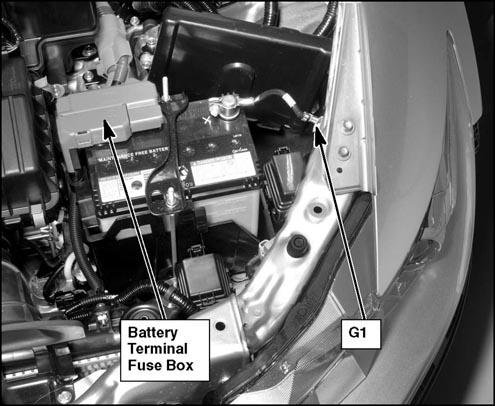

Fig 28: Left Front Of Engine Compartment

G00475241

Courtesy of AMERICAN HONDA MOTOR CO., INC.

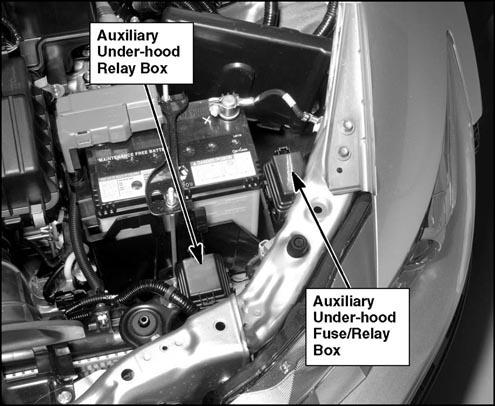

Fig 29: Left Front Of Engine Compartment

G00475242

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 30: Left Front Of Engine Compartment

G00475243

Courtesy of AMERICAN HONDA MOTOR CO., INC.

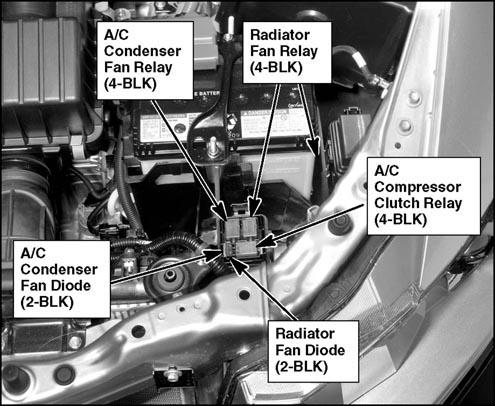

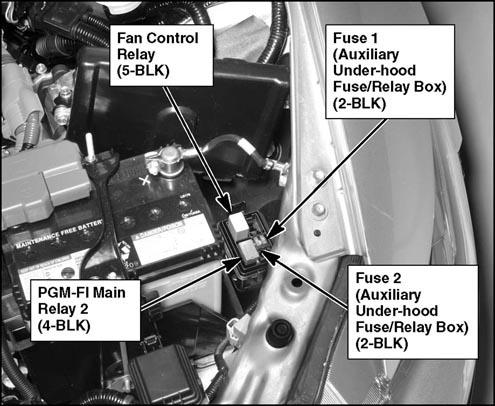

Fig 31: Left Front Of Engine Compartment

G00475244

Courtesy of AMERICAN HONDA MOTOR CO., INC.

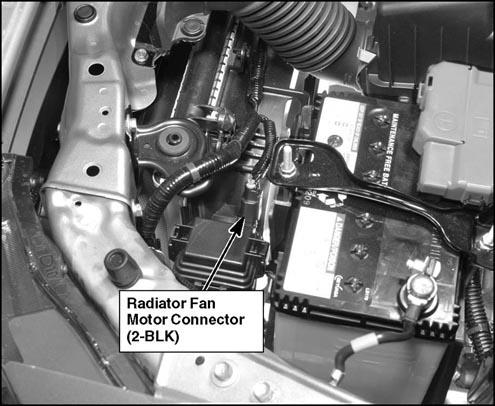

Fig 32: Left Front Of Engine Compartment

G00475245

Courtesy of AMERICAN HONDA MOTOR CO., INC.

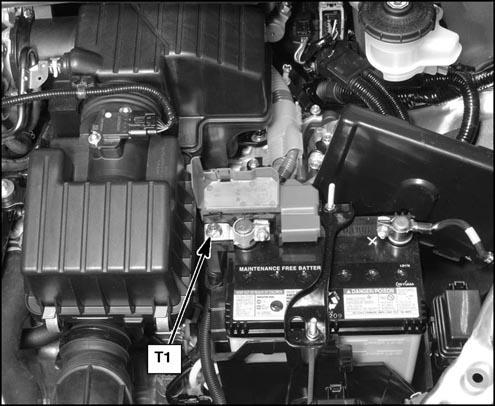

Fig 33: Left Side Of Engine Compartment

G00475246

Courtesy of AMERICAN HONDA MOTOR CO., INC.

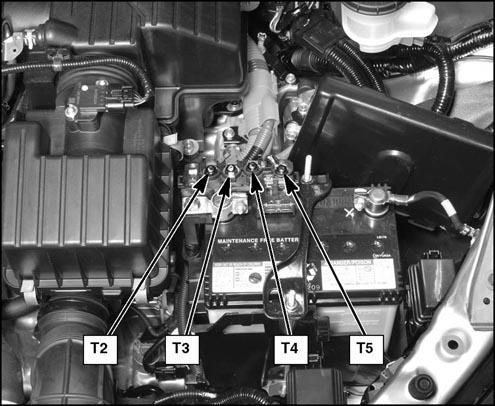

Fig 34: Left Side Of Engine Compartment

G00475247

Courtesy of AMERICAN HONDA MOTOR CO., INC.

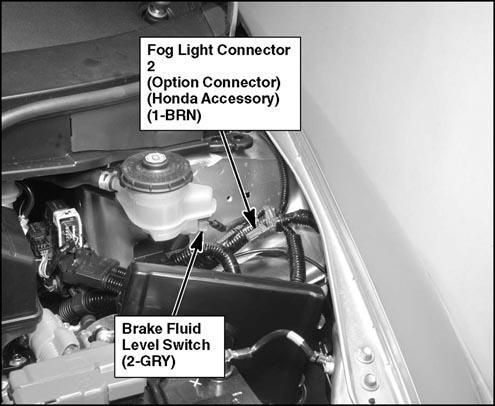

Fig 35: Left Side Of Engine Compartment

G00475248

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 36: Left Side Of Engine Compartment

G00475249

Courtesy of AMERICAN HONDA MOTOR CO., INC.

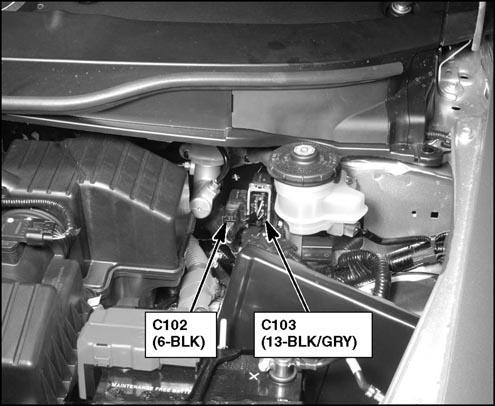

Fig 37: Left Rear Of Engine Compartment

G00475250

Courtesy of AMERICAN HONDA MOTOR CO., INC.

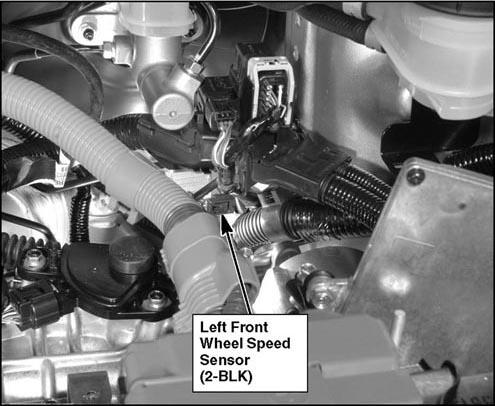

Fig 38: Left Rear Of Engine Compartment (Right Similar)

G00475251

Courtesy of AMERICAN HONDA MOTOR CO., INC.

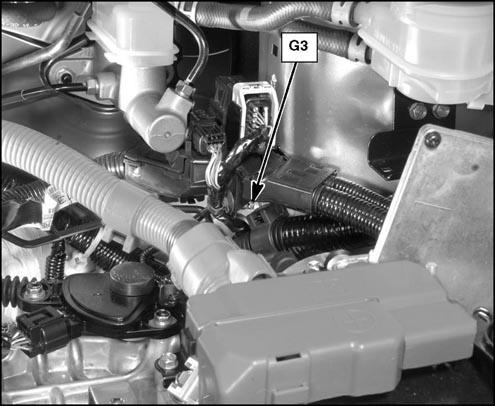

Fig 39: Left Rear Of Engine Compartment

G00475252

Courtesy of AMERICAN HONDA MOTOR CO., INC.

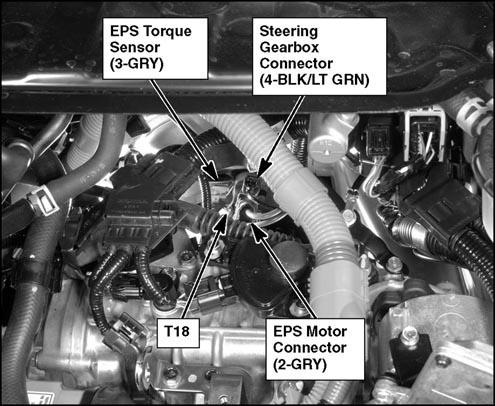

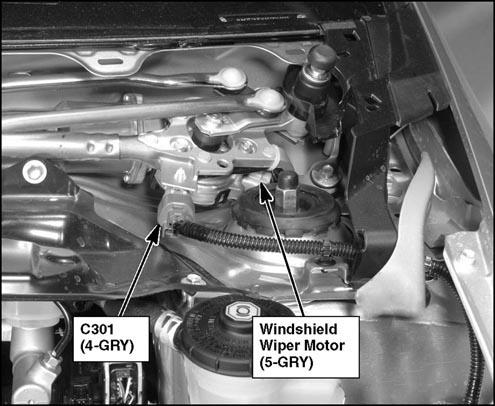

Fig 40: Left Rear Of Engine Compartment

G00475253

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 41: Left Rear Of Engine Compartment

G00475254

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 42: Left Side Of Dash

G00475255

Courtesy of AMERICAN HONDA MOTOR CO., INC.

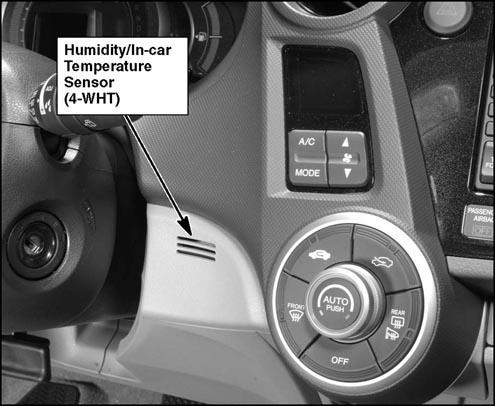

Fig 43: Left Side Of Dash

G00475256

Courtesy of AMERICAN HONDA MOTOR CO., INC.

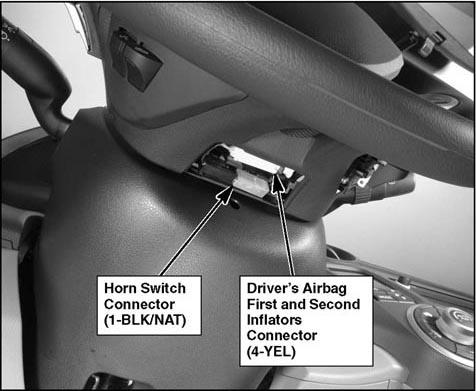

Fig 44: Steering Wheel

G00475257

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 45: Steering Column Cover

G00475258

Courtesy of AMERICAN HONDA MOTOR CO., INC.

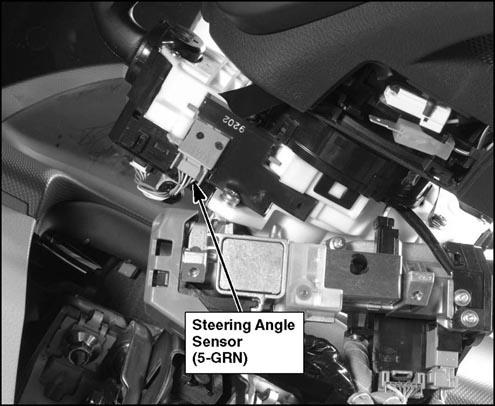

Fig 46: Steering Column Cover

G00475259

Courtesy of AMERICAN HONDA MOTOR CO., INC.

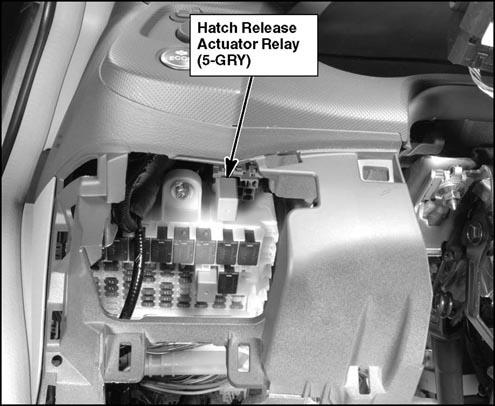

Fig 47: Left Side Of Dash

G00475260

Courtesy of AMERICAN HONDA MOTOR CO., INC.

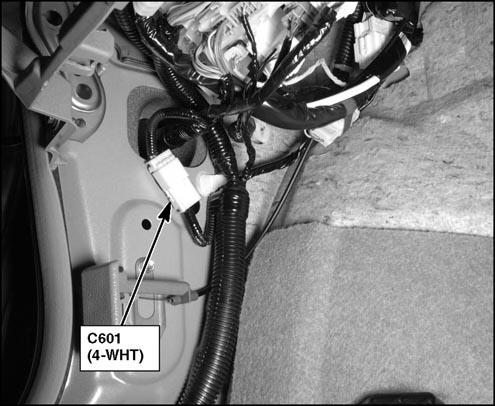

Fig 48: Right Kick Panel

G00475262

Courtesy of AMERICAN HONDA MOTOR CO., INC.

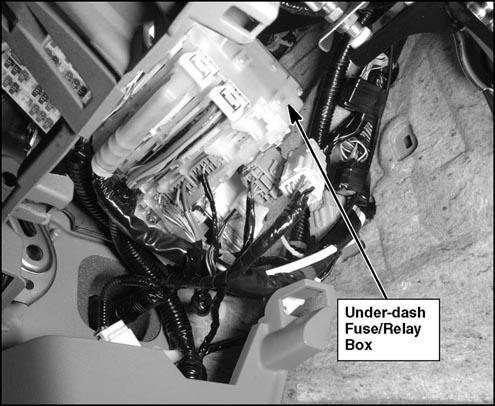

Fig 49: Left Side Of Dash

G00475263

Courtesy of AMERICAN HONDA MOTOR CO., INC.

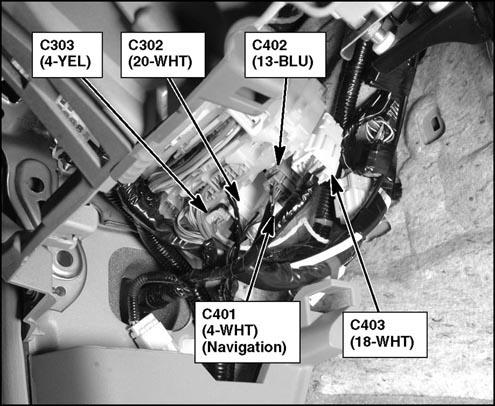

Fig 50: Left Side Of Dash

G00475264

Courtesy of AMERICAN HONDA MOTOR CO., INC.

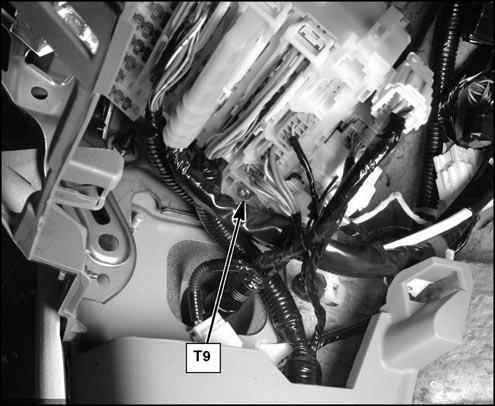

Fig 51: Left Side Of Dash

G00475265

Courtesy of AMERICAN HONDA MOTOR CO., INC.

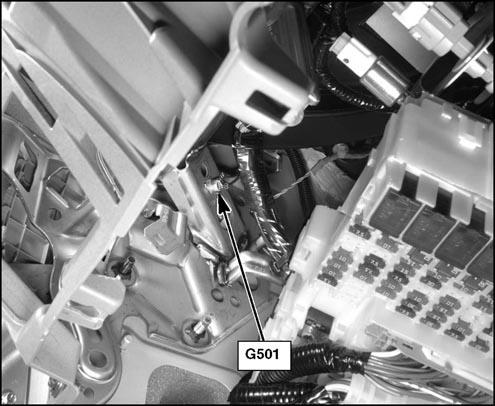

Fig 52: Left Side Of Dash

G00475266

Courtesy of AMERICAN HONDA MOTOR CO., INC.

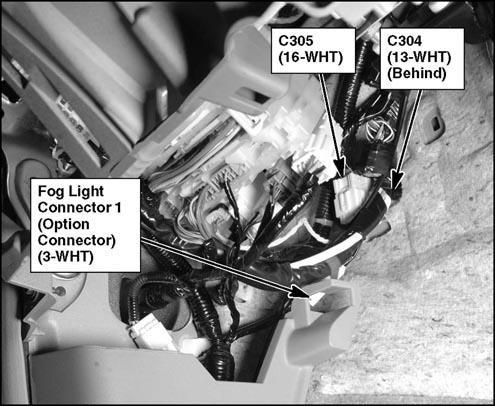

Fig 53: Left Side Of Dash

G00475267

Courtesy of AMERICAN HONDA MOTOR CO., INC.

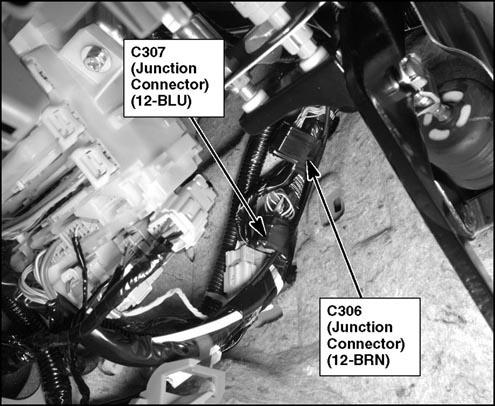

Fig 54: Left Side Of Dash

G00475268

Courtesy of AMERICAN HONDA MOTOR CO., INC.

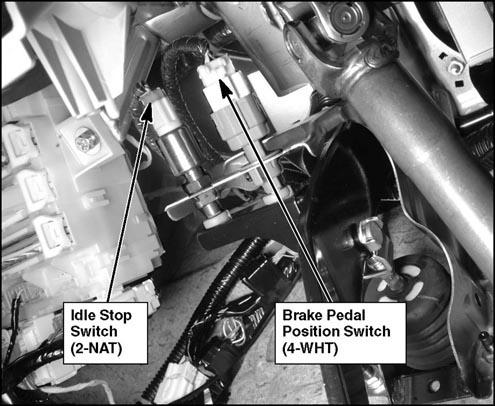

Fig 55: Left Side Of Dash

G00475269

Courtesy of AMERICAN HONDA MOTOR CO., INC.

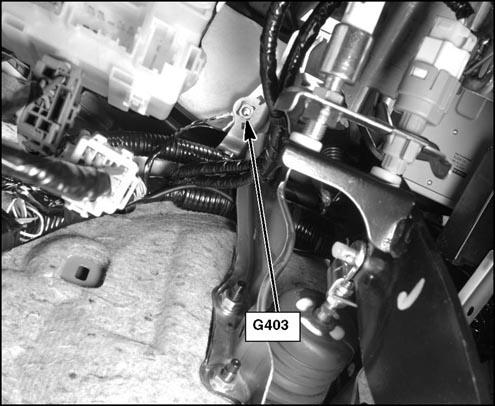

Fig 56: Left Side Of Dash

G00475271

Courtesy of AMERICAN HONDA MOTOR CO., INC.

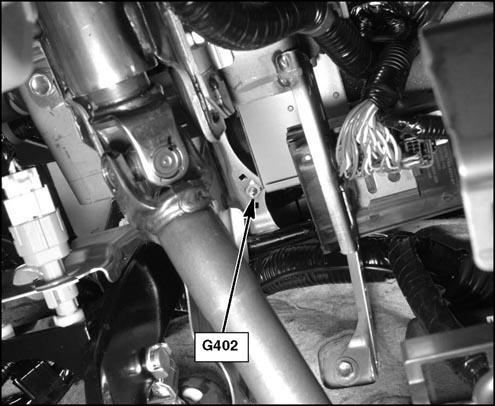

Fig 57: Left Side Of Dash

G00475272

Courtesy of AMERICAN HONDA MOTOR CO., INC.

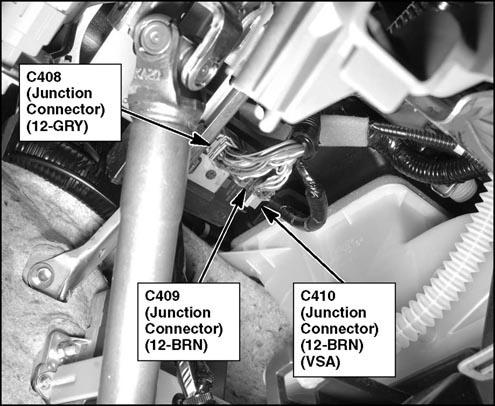

Fig 58: Left Side Of Dash

G00475274

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 59: Left Side Of Dash

G00475275

Courtesy of AMERICAN HONDA MOTOR CO., INC.

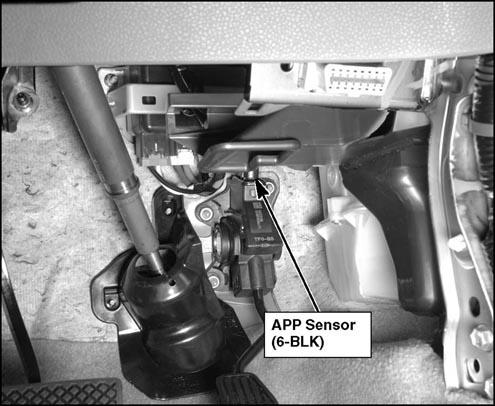

Fig 60: Left Side Of Dash

G00475276

Courtesy of AMERICAN HONDA MOTOR CO., INC.

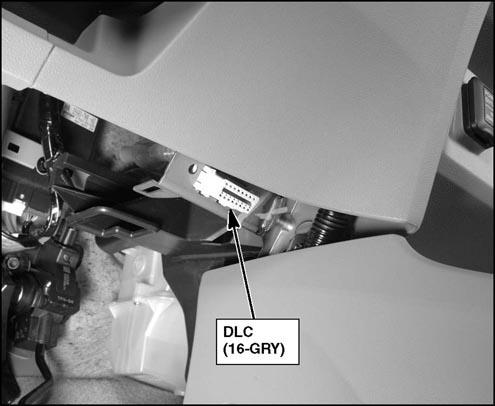

Fig 61: Left Side Of Dash

G00475278

Courtesy of AMERICAN HONDA MOTOR CO., INC.

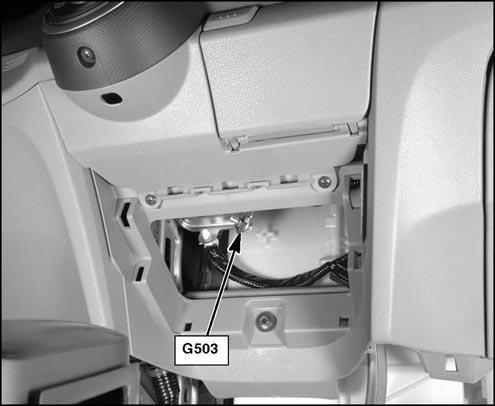

Fig 62: Center Of Dash

G00475279

Courtesy of AMERICAN HONDA MOTOR CO., INC.

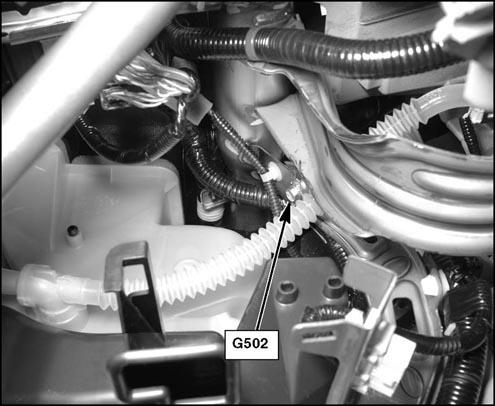

Fig 63: Center Of Dash

G00475280

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 64: Center Of Dash

G00475281

Courtesy of AMERICAN HONDA MOTOR CO., INC.

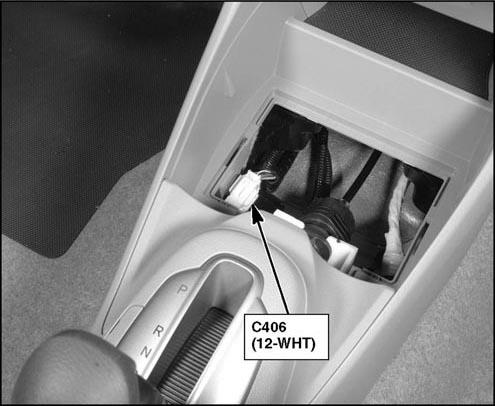

Fig 65: Center Of Dash

G00475282

Courtesy of AMERICAN HONDA MOTOR CO., INC.

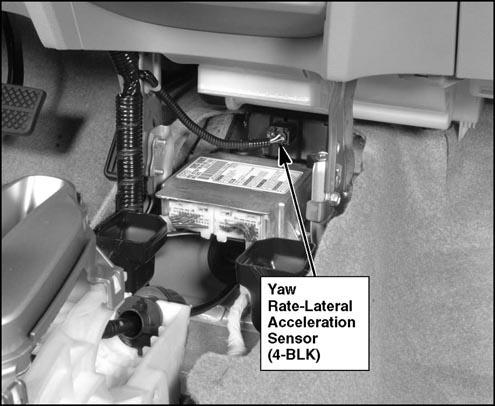

Fig 66: Center Of Dash

G00475283

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 67: Behind Audio-Navigation Unit

G00475284

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 68: Behind Climate Control Unit

G00475285

Courtesy of AMERICAN HONDA MOTOR CO., INC.

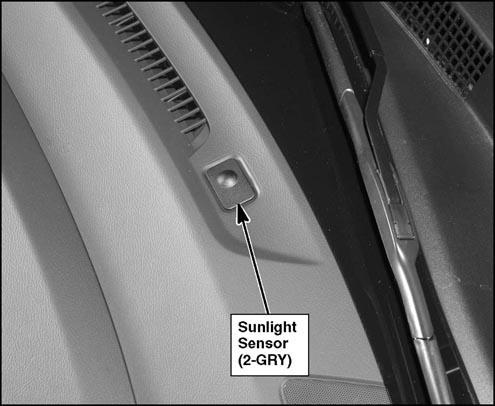

Fig 69: Right Side Of Dash

G00475286

Courtesy of AMERICAN HONDA MOTOR CO., INC.

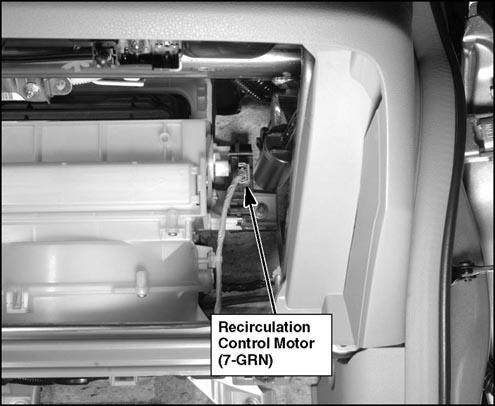

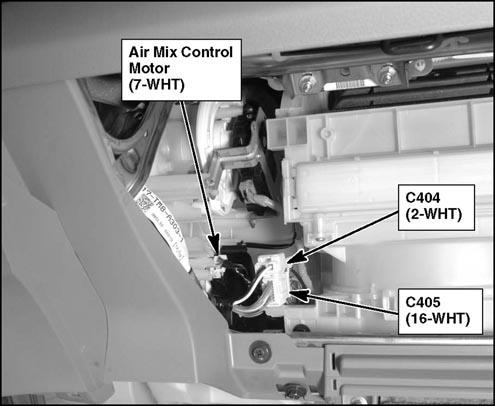

Fig 70: Right Side Of Dash

G00475287

Courtesy of AMERICAN HONDA MOTOR CO., INC.

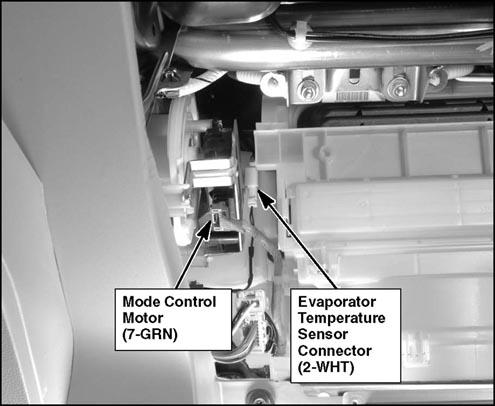

Fig 71: Right Side Of Dash

G00475288

Courtesy of AMERICAN HONDA MOTOR CO., INC.

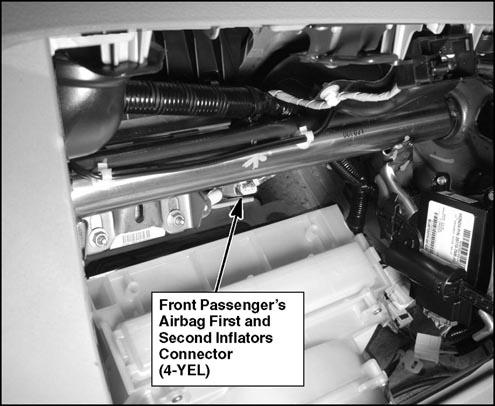

Fig 72: Right Side Of Dash

G00475289

Courtesy of AMERICAN HONDA MOTOR CO., INC.

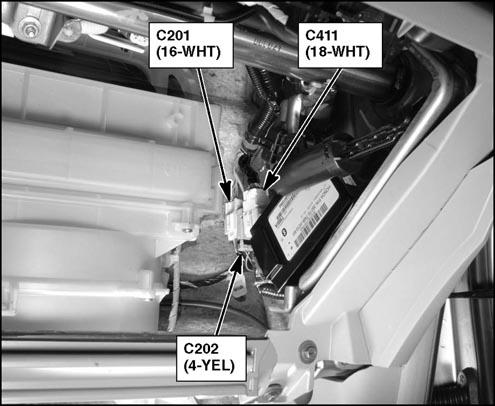

Fig 73: Right Side Of Dash

G00475290

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 74: Right Side Of Dash

G00475291

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 75: Right Side Of Dash

G00475292

Courtesy of AMERICAN HONDA MOTOR CO., INC.

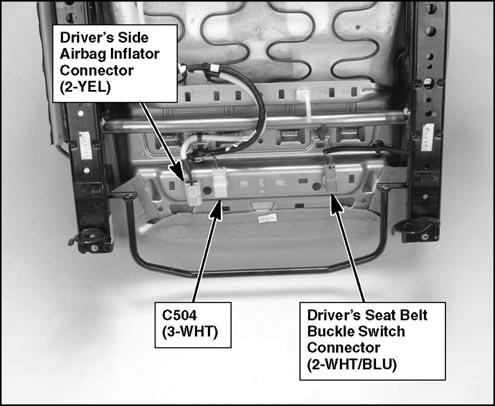

Fig 76: Driver's Seat

G00476184

Courtesy of AMERICAN HONDA MOTOR CO., INC.

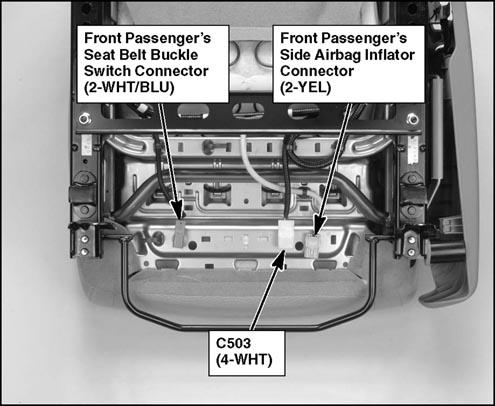

Fig 77: Front Passenger's Seat

G00476186

Courtesy of AMERICAN HONDA MOTOR CO., INC.

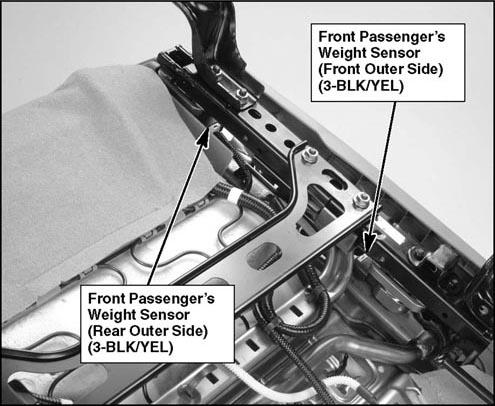

Fig 78: Front Passenger's Seat

G00476187

Courtesy of AMERICAN HONDA MOTOR CO., INC.

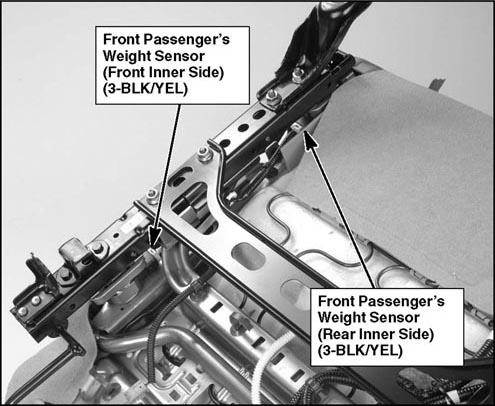

Fig 79: Front Passenger's Seat

G00476188

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 80: Front Passenger's Seat

G00476189

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 81: Rear Of Center Console

G00476190

Courtesy of AMERICAN HONDA MOTOR CO., INC.

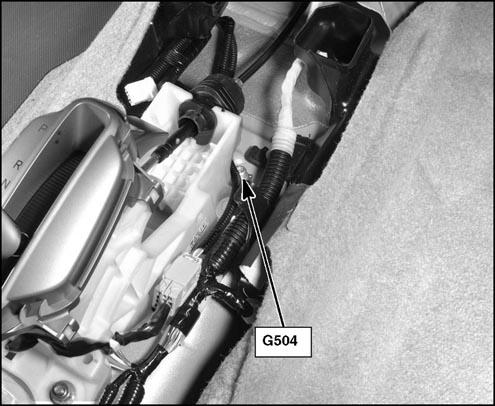

Fig 82: Center Console

G00476191

Courtesy of AMERICAN HONDA MOTOR CO., INC.

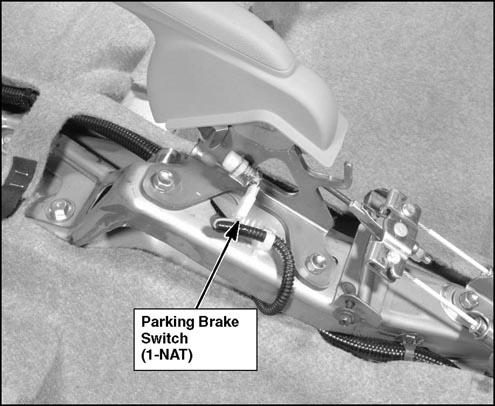

Fig 83: Center Console

G00476192

Courtesy of AMERICAN HONDA MOTOR CO., INC.

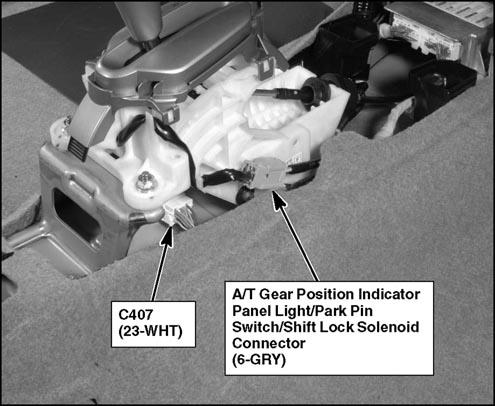

Fig 84: Center Console

G00476193

Courtesy of AMERICAN HONDA MOTOR CO., INC.

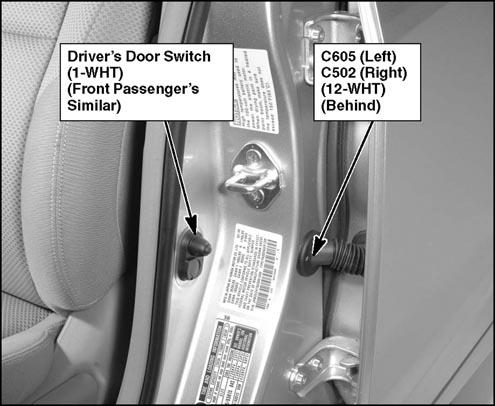

Fig 85: Left "B" Pillar

G00476194

Courtesy of AMERICAN HONDA MOTOR CO., INC.

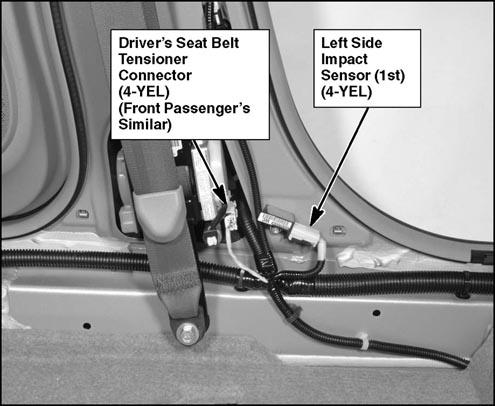

Fig 86: Left "B" Pillar (Right Similar)

G00476195

Courtesy of AMERICAN HONDA MOTOR CO., INC.

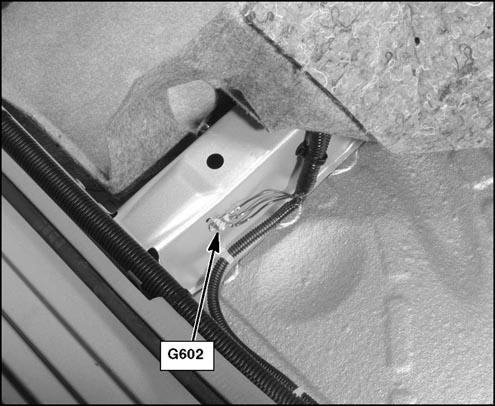

Fig 87: Left Side Of Floor

G00476196

Courtesy of AMERICAN HONDA MOTOR CO., INC.

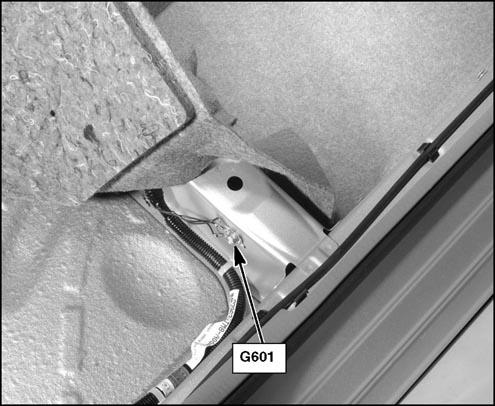

Fig 88: Right Side Of Floor

G00476197

Courtesy of AMERICAN HONDA MOTOR CO., INC.

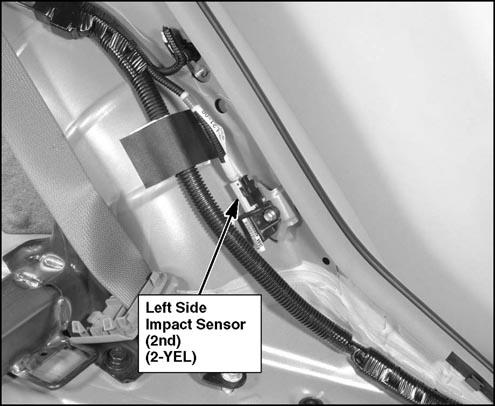

Fig 89: Left "C" Pillar (Right Similar)

G00476198

Courtesy of AMERICAN HONDA MOTOR CO., INC.

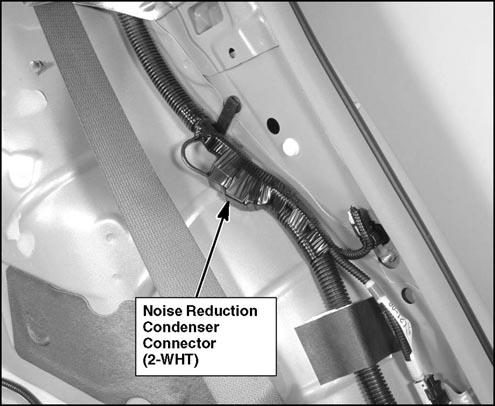

Fig 90: Left "C" Pillar

G00476199

Courtesy of AMERICAN HONDA MOTOR CO., INC.

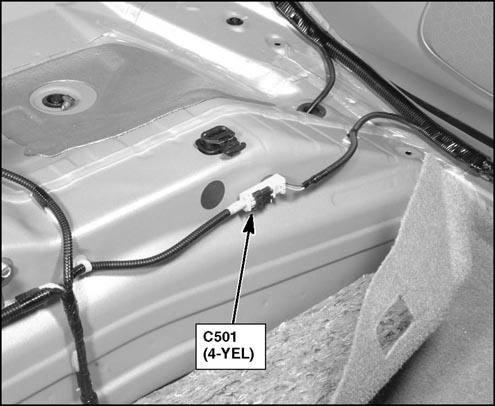

Fig 91: Left Rear Of Floor

G00476200

Courtesy of AMERICAN HONDA MOTOR CO., INC.

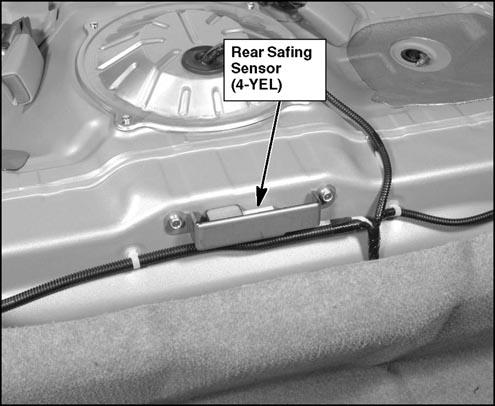

Fig 92: Rear Of Floor

G00476201

Courtesy of AMERICAN HONDA MOTOR CO., INC.

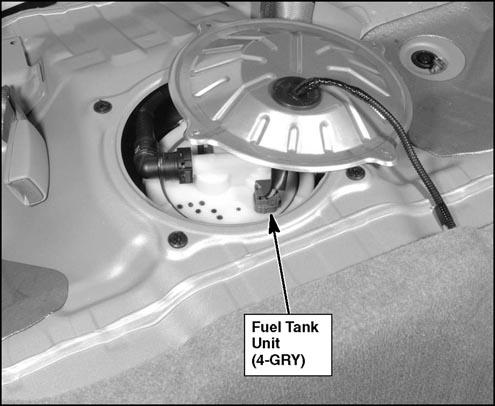

Fig 93: Rear Of Floor

G00476202

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 94: Under IPU Lid

G00476203

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 95: Under IPU Lid

G00476204

Courtesy of AMERICAN HONDA MOTOR CO., INC.

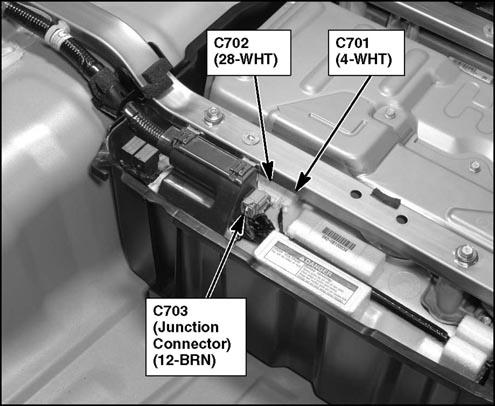

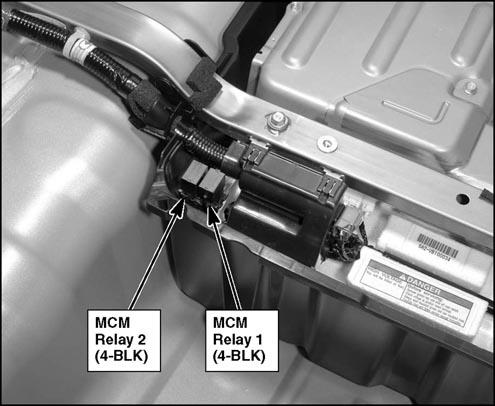

Fig 96: Under IPU Lid

G00476205

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 97: Under IPU Lid

G00476206

Courtesy of AMERICAN HONDA MOTOR CO., INC.

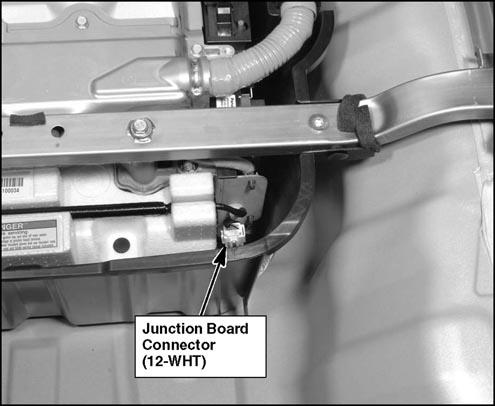

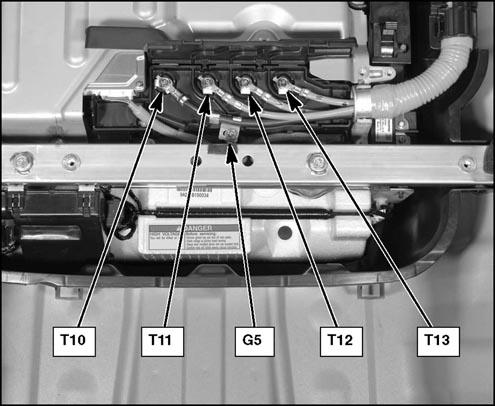

Fig 98: Under IPU Lid

G00476207

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 99: Under IPU Lid

G00476208

Courtesy of AMERICAN HONDA MOTOR CO., INC.

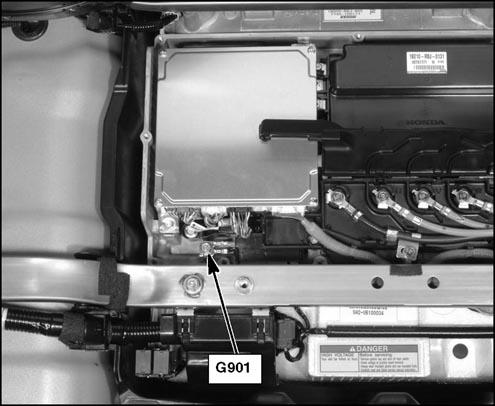

Fig 100: Under IPU Lid

G00476209

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 101: Under IPU Lid

G00476210

Courtesy of AMERICAN HONDA MOTOR CO., INC.

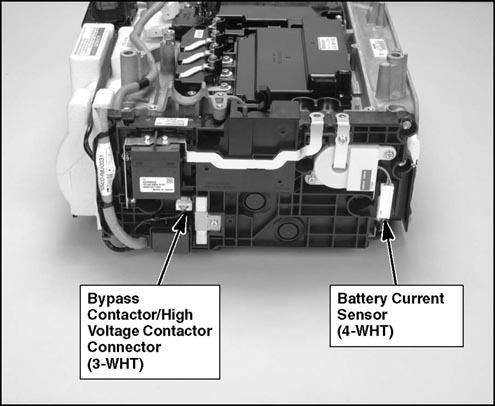

Fig 102: Right Side Of IPU

G00476211

Courtesy of AMERICAN HONDA MOTOR CO., INC.

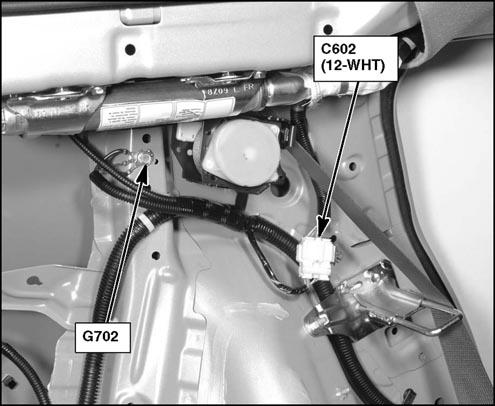

Fig 103: Left Side Of Cargo Area

G00476212

Courtesy of AMERICAN HONDA MOTOR CO., INC.

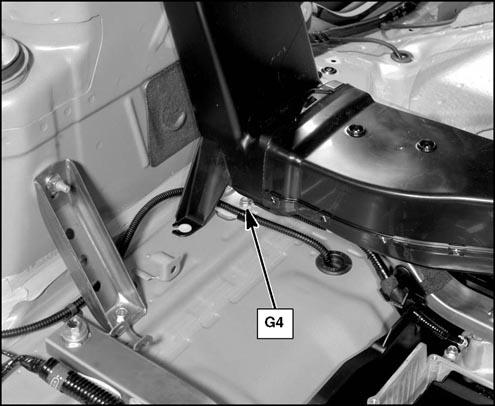

Fig 104: Left Side Of Cargo Area

G00476213

Courtesy of AMERICAN HONDA MOTOR CO., INC.

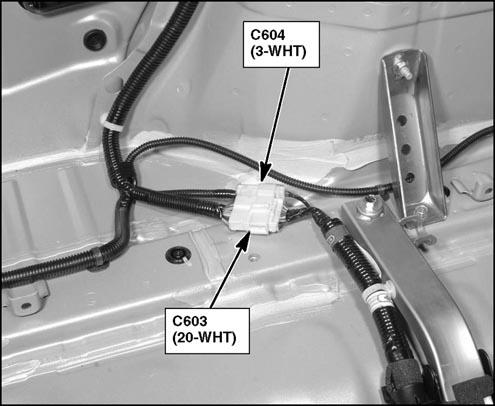

Fig 105: Left Side Of Cargo Area

G00476214

Courtesy of AMERICAN HONDA MOTOR CO., INC.

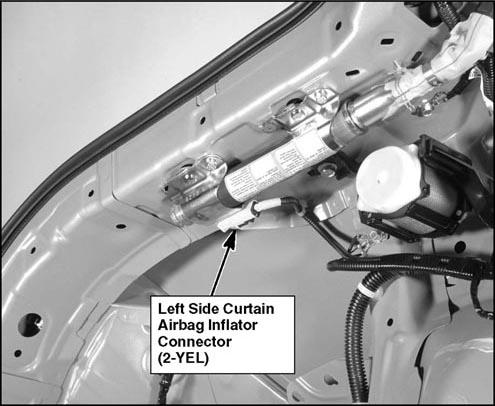

Fig 106: Left Side Of Cargo Area (Right Similar)

G00476215

Courtesy of AMERICAN HONDA MOTOR CO., INC.

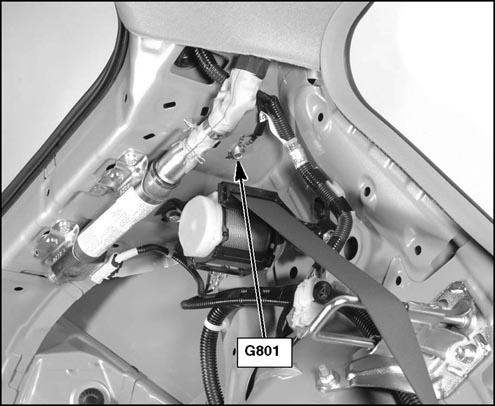

Fig 107: Left "C" Pillar

G00476216

Courtesy of AMERICAN HONDA MOTOR CO., INC.

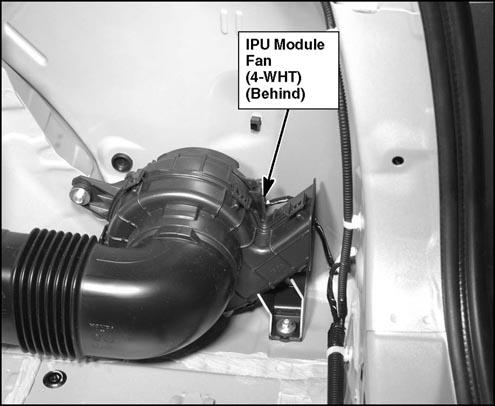

Fig 108: Right Rear Of Cargo Area

G00476217

Courtesy of AMERICAN HONDA MOTOR CO., INC.

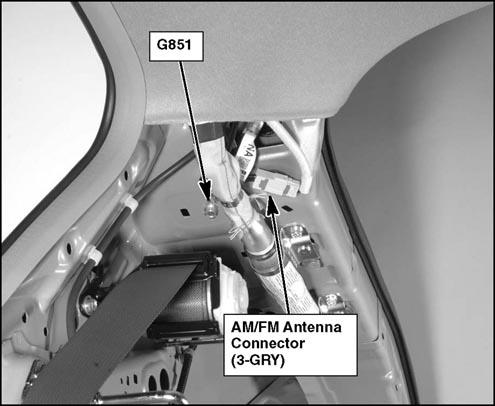

Fig 109: Right "C" Pillar

G00476218

Courtesy of AMERICAN HONDA MOTOR CO., INC.

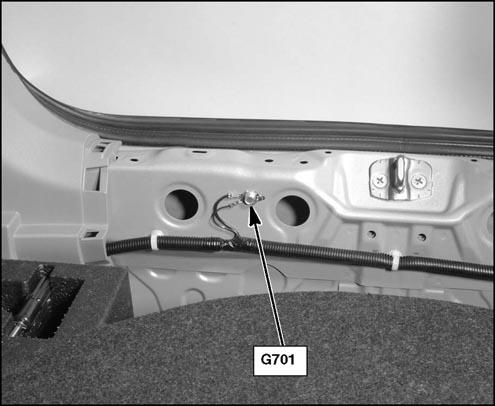

Fig 110: Rear Of Cargo Area

G00476219

Courtesy of AMERICAN HONDA MOTOR CO., INC.

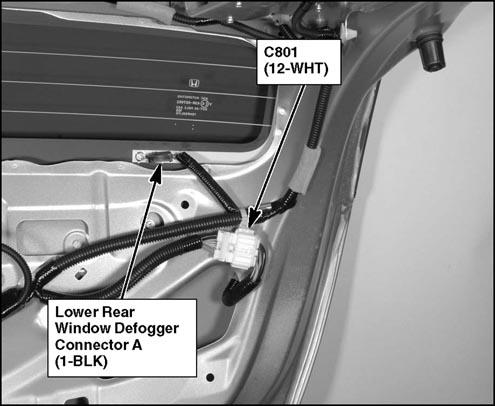

Fig 111: Left Rear Of Hatch

G00476220

Courtesy of AMERICAN HONDA MOTOR CO., INC.

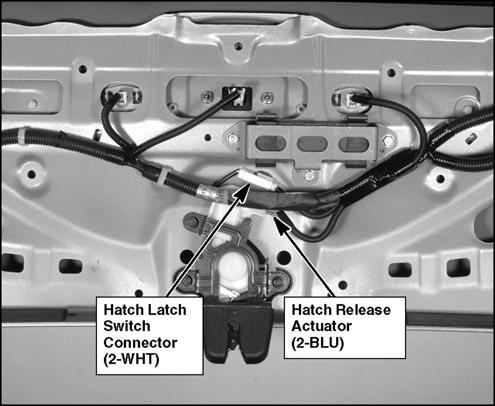

Fig 112: Rear Of Hatch

G00476221

Courtesy of AMERICAN HONDA MOTOR CO., INC.

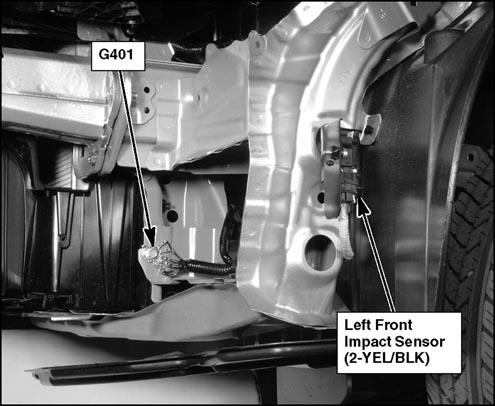

Fig 113: Left Side Of Front Bumper

G00476222

Courtesy of AMERICAN HONDA MOTOR CO., INC.

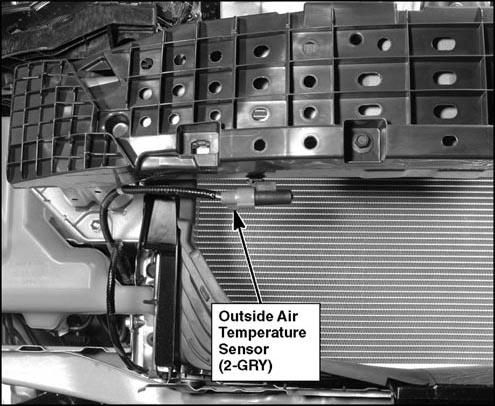

Fig 114: Right Side Of Front Bumper

G00476224

Courtesy of AMERICAN HONDA MOTOR CO., INC.

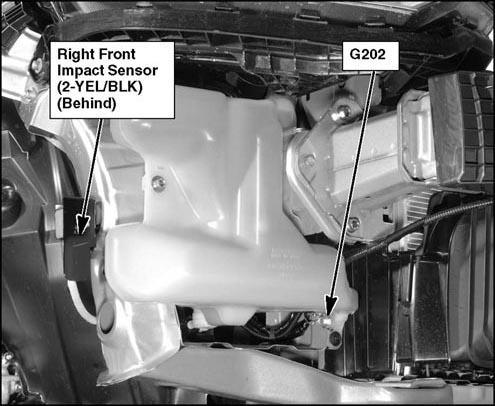

Fig 115: Right Side of Front Bumper

G00476225

Courtesy of AMERICAN HONDA MOTOR CO., INC.

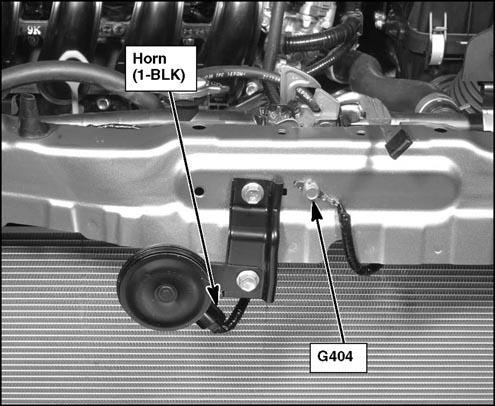

Fig 116: Middle Of Front Bumper

G00476223

Courtesy of AMERICAN HONDA MOTOR CO., INC.

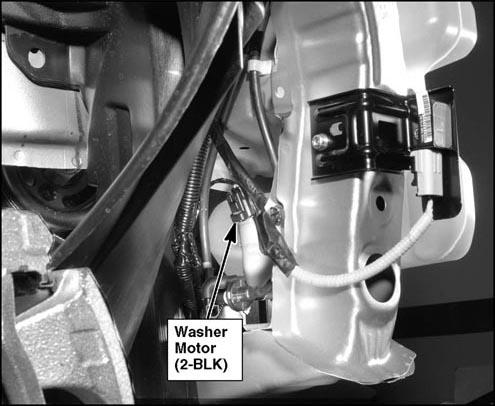

Fig 117: Right Side Of Front Bumper

G00476226

Courtesy of AMERICAN HONDA MOTOR CO., INC.

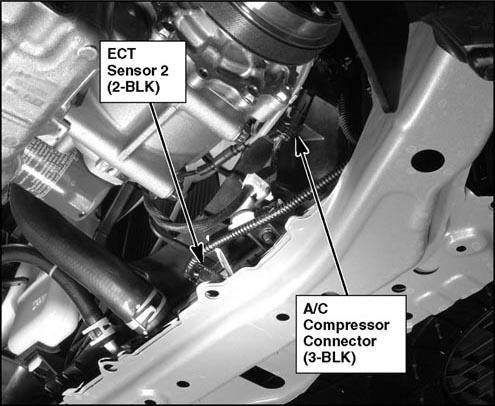

Fig 118: Under Right Front Of Engine Compartment

G00476227

Courtesy of AMERICAN HONDA MOTOR CO., INC.

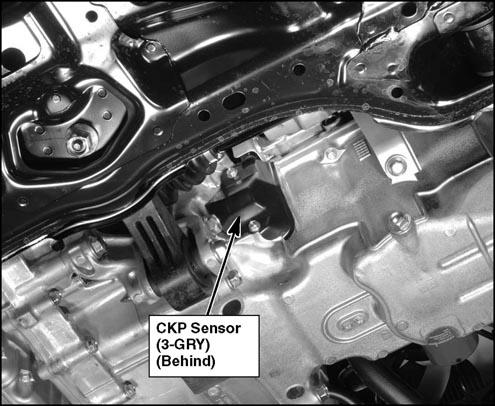

Fig 119: Under Rear Of Engine

G00476228

Courtesy of AMERICAN HONDA MOTOR CO., INC.

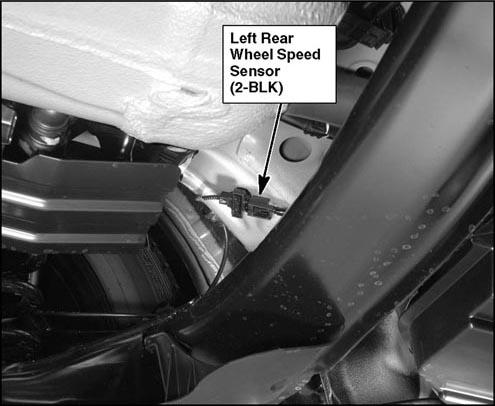

Fig 120: Under Left Rear Of Vehicle (Right Similar)

G00476229

Courtesy of AMERICAN HONDA MOTOR CO., INC.

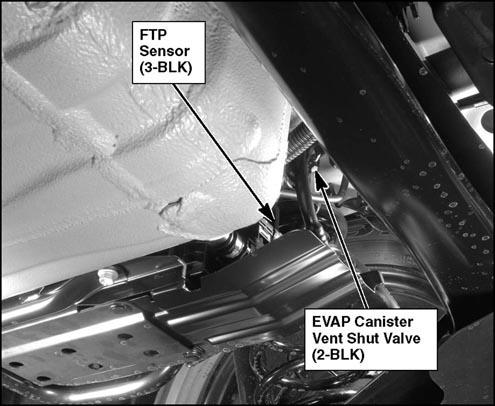

Fig 121: Under Left Rear Of Vehicle

G00476230

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 122: Left Side Of Dash

G00475277

Courtesy of AMERICAN HONDA MOTOR CO., INC.

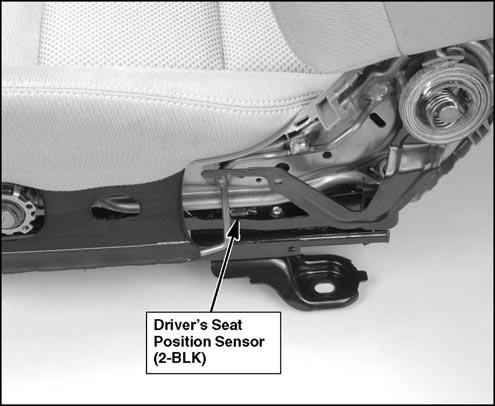

Fig 123: Driver's Seat

G00476185

Courtesy of AMERICAN HONDA MOTOR CO., INC.

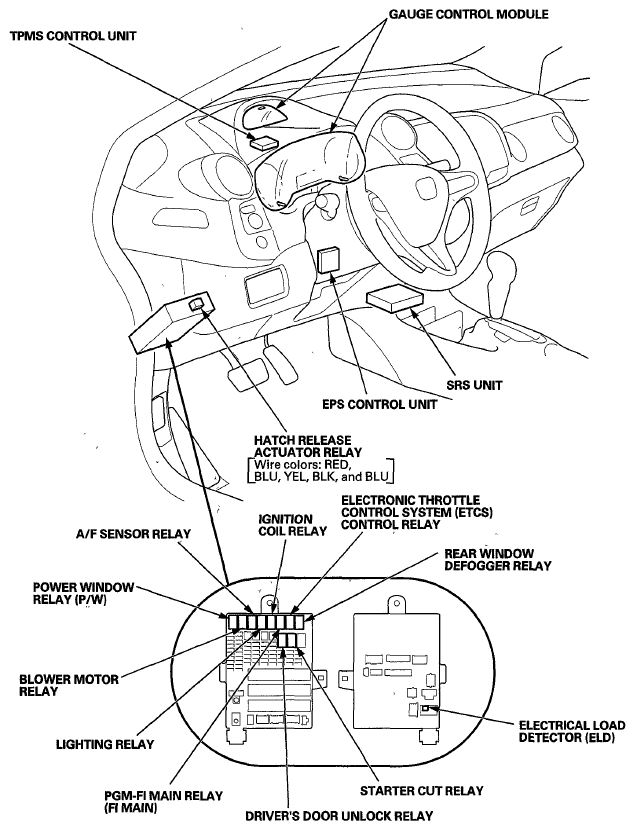

Fig 124: Under-Dash Fuse/Relay Box

G06431437

Courtesy of AMERICAN HONDA MOTOR CO., INC.
