Fit Base, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Frames, Subframes & Crossmembers
>>
Frame
>>
Frame Repair Diagram
>>
Side View
Side View

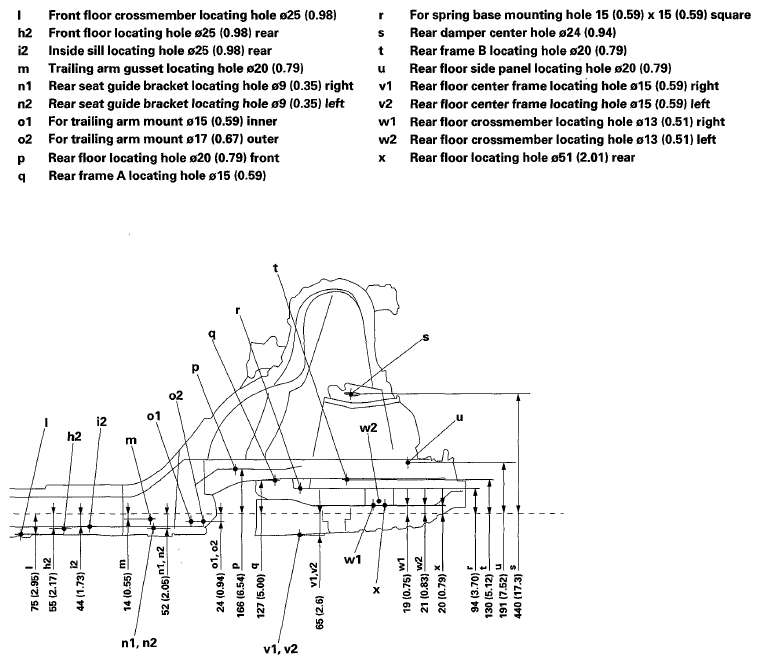

Fig 1: Side View Frame Repair Diagram (1 Of 2) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

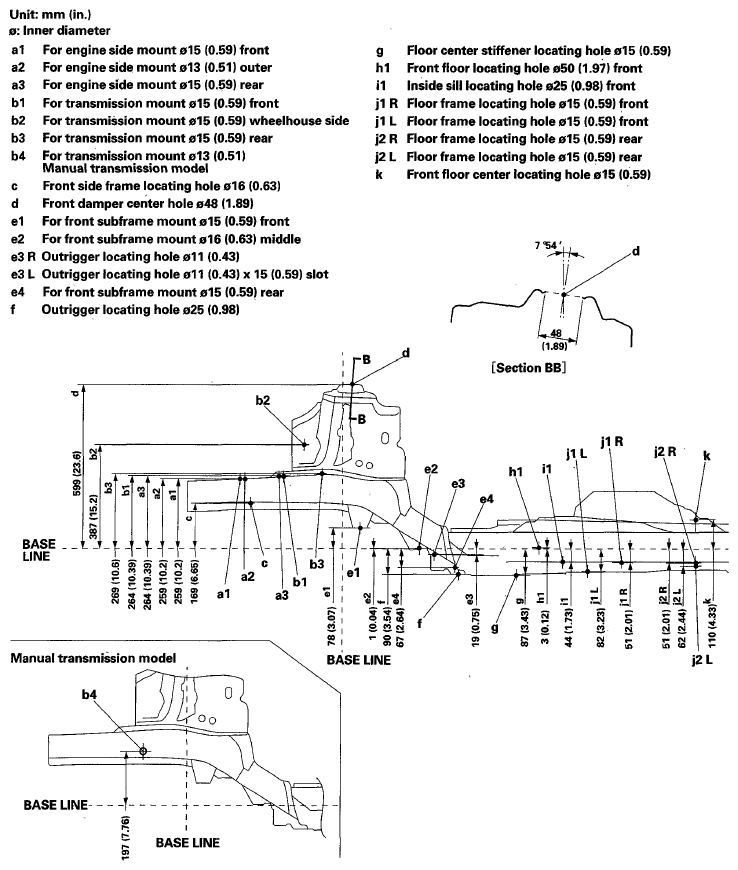

Fig 2: Side View Frame Repair Diagram (2 Of 2) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
