DTC P0733: 3rd Gear Incorrect Ratio: Notes

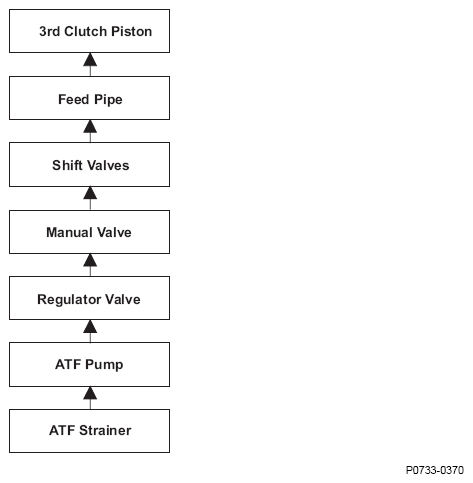

Fig 1: 3rd Gear Block Diagram

G08526150

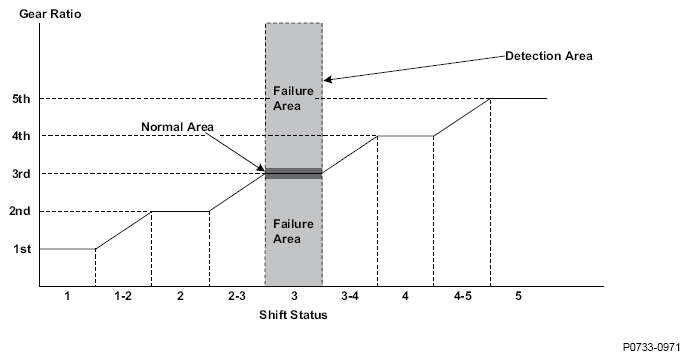

Fig 2: Gear Ratio Versus Shift Status Graph (3rd Gear)

G08526151
