Front Subframe Torque

NOTE:
  • After loosening the subframe mounting bolts, be sure to replace them with new ones.
  • Loosely install new front subframe mounting bolts, then tighten the bolts to the specified torque in the sequence shown.

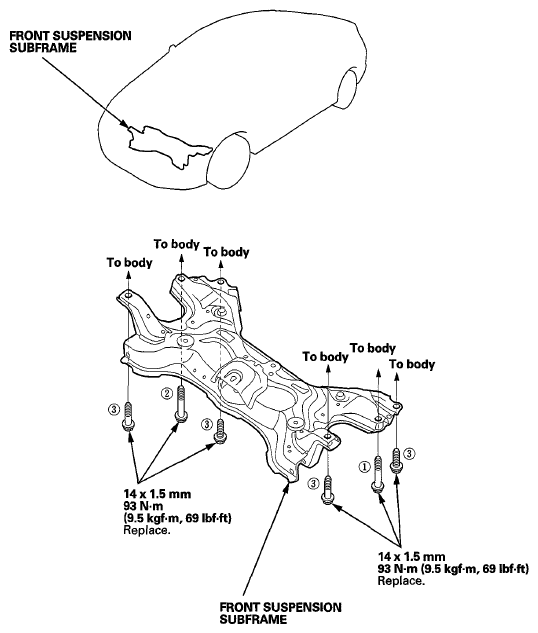

Fig 1: Front Subframe With Torque Specifications
G06431243Courtesy of AMERICAN HONDA MOTOR CO., INC.
