Center Console Removal/Installation

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repair or service.

NOTE:

Take care not to scratch the front seat, the dashboard, and related parts.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Move the shift lever to N.
Remove the center console (A).
1. Remove the parking brake cover lid (B) and the separation box (C).
2. Remove the console box mat (D, E).
3. If equipped, remove the center console lid (F), and disconnect the USB unit connector (G).
4. With center console armrest: Remove the bolts (H).
5. Remove the clips (I) and the bolts (J), then remove the center console.

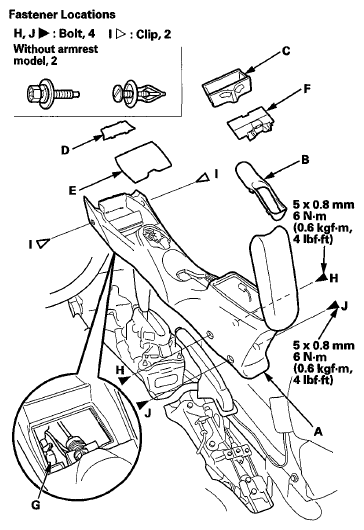

Fig 1: Center Console Lid, Clip And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trim in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
- Make sure the wire harness is not pinched.
- Make sure each connector is plugged in properly.
