Fuse Access Panel Removal/Installation

NOTE: Take care not to scratch the dashboard and its related parts.
  1. Pull out the fuse access panel (A) to detach the hooks (B).

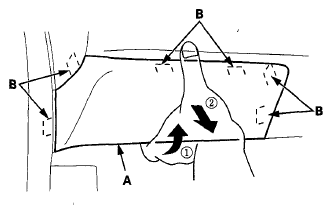

    Fig 1: Identifying Fuse Access Panel And Hooks
    G06431062Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the panel in the reverse order of removal, and push the hooks into place securely.
