Humidity/In-car Temperature Sensor Trim Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

Take care not to scratch the dashboard and its related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
Remove the humidity/in-car temperature sensor trim (A).
1. Remove the screw.
2. Pull out the humidity/in-car temperature sensor trim slightly toward you, detach the clips, and disconnect the aspirator air hose (B) and humidity/in-car temperature sensor connector (C).

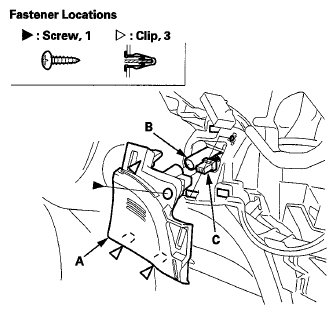

Fig 1: Identifying Aspirator Air Hose And Temperature Sensor Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trim in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
- Make sure each connector is plugged in properly.
