Component Location Index

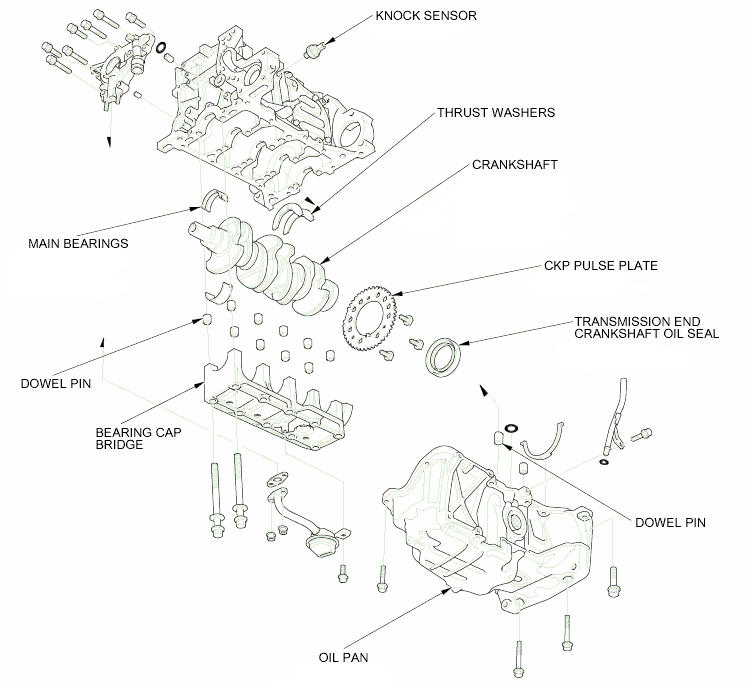

Fig 1: Identifying Engine Block Component Location (1 Of 2)
G00496873Courtesy of AMERICAN HONDA MOTOR CO., INC.

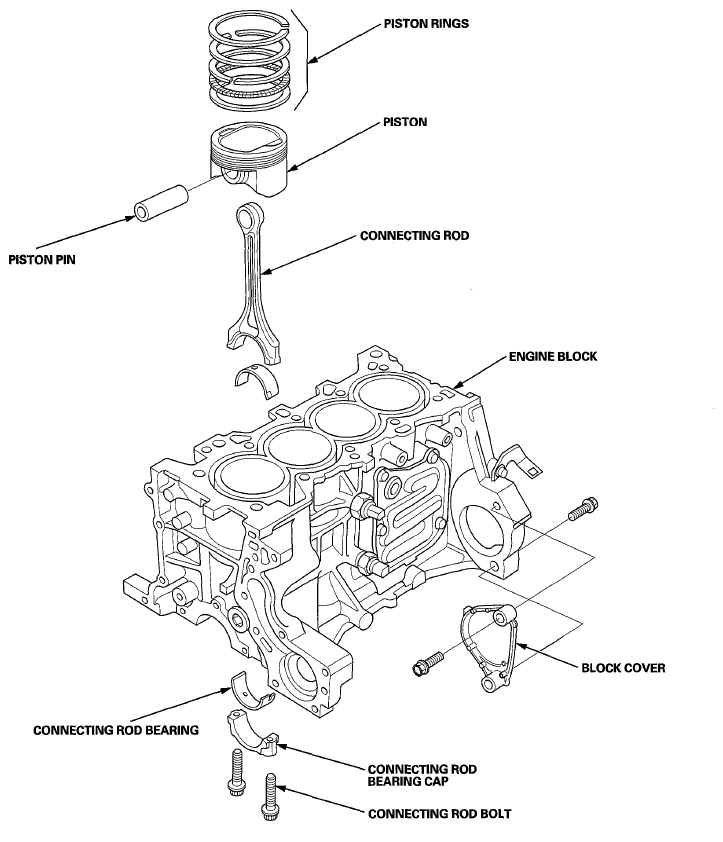

Fig 2: Identifying Engine Block Component Location (2 Of 2)
G06428963Courtesy of AMERICAN HONDA MOTOR CO., INC.
