Drain Bolt/Sealing Bolt Installation

NOTE: When installing the drain bolt and/or sealing bolt, always use a new washer.

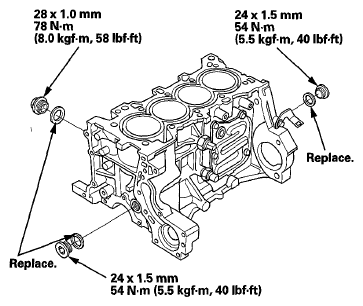

Fig 1: Drain and Sealing Bolt With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
