N Position

Engine power transmitted from the flywheel drives the input shaft, but hydraulic pressure is not applied to the forward clutch and the reverse brake. Power is not transmitted to the drive pulley shaft. Also hydraulic pressure is not applied to the start clutch.

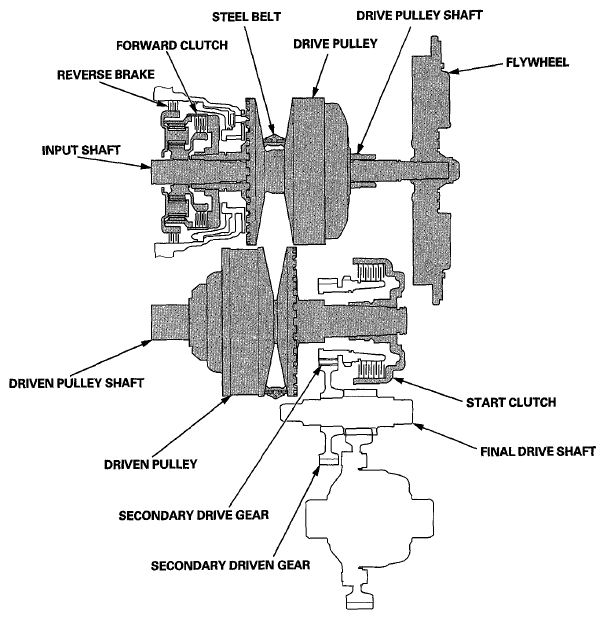

Fig 1: Power Flow Of Transmission - N Position
G06430020Courtesy of AMERICAN HONDA MOTOR CO., INC.
