ELD Replacement

  1. Remove the under-dash fuse/relay box (see REMOVAL AND INSTALLATION ).
  2. Remove the fuse (A).

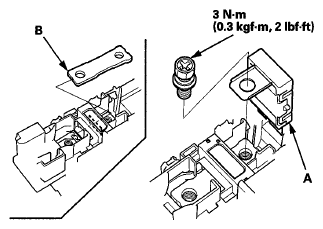

    Fig 1: Fuse With Torque Specifications
    G06429384Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the joint bar (B).
  4. Turn over the under-dash fuse/relay box, then remove the ELD (A).

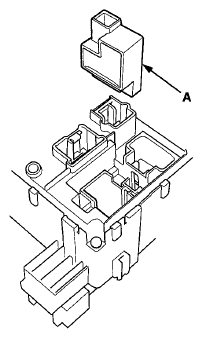

    Fig 2: Identifying ELD
    G06429385Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the parts in the reverse order of removal.
