MAF Sensor/IAT Sensor Replacement

  1. Disconnect the MAF sensor/IAT sensor 5P connector (A).

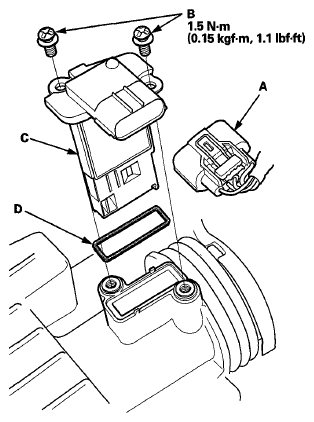

    Fig 1: MAF Sensor/IAT Sensor 5P Connector, Screws With Torque Specifications And Gasket
    G06429381Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the screws (B).
  3. Remove the MAF sensor/IAT sensor (C).
  4. Install the parts in the reverse order of removal with a new gasket (D).
