MAP Sensor Replacement

  1. Remove the cowl cover and the under-cowl panel (see COWL COVER REPLACEMENT ).
  2. Disconnect the MAP sensor 3P connector (A).

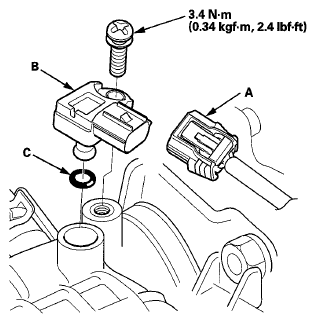

    Fig 1: MAP Sensor 3P Connector With Torque Specifications And O-Ring
    G06429380Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the MAP sensor (B).
  4. Install the parts in the reverse order of removal with a new O-ring (C).
