Connector-to-Fuse/Relay Box Index

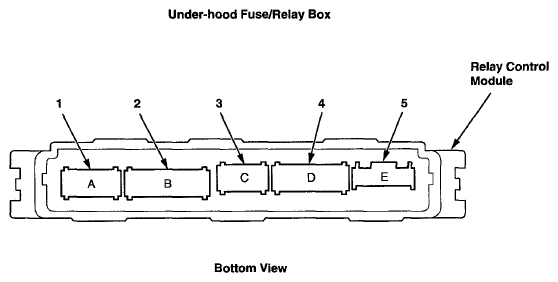

CONNECTOR-TO-FUSE/RELAY BOX INDEX
| Ref | Socket | Cavities | Connects to | Notes |
|---|---|---|---|---|
| 1 | Under-hood Fuse/Relay Box Connector A | 10 | Not Used | |
| 2 | Under-hood Fuse/Relay Box Connector B | 16 | Right Engine Compartment Wire Harness (Engine Compartment Branch) (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) ) | |
| 3 | Under-hood Fuse/Relay Box Connector C | 8 | Right Engine Compartment Wire Harness (Engine Compartment Branch) (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) ) | |
| 4 | Under-hood Fuse/Relay Box Connector D | 14 | Right Engine Compartment Wire Harness (Engine Compartment Branch) (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) ) | |
| 5 | Under-hood Fuse/Relay Box Connector E | 4 | Right Engine Compartment Wire Harness (Engine Compartment Branch) (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) ) |
