Air Cleaner Removal/Installation

  1. Disconnect the MAF sensor/IAT sensor connector (A).

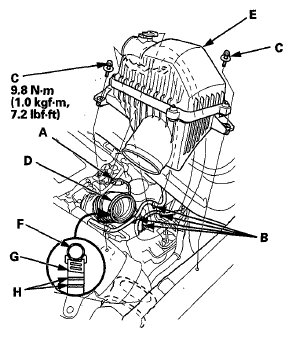

    Fig 1: MAF Sensor/IAT Sensor Connector, Harness Clamp, Bolts, Band & Air Cleaner With Torque Specifications
    G05961471Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the harness clamps (B) and the bolts (C).
  3. Loosen the band (D), then remove the air cleaner (E).
  4. Install the parts in the reverse order of removal.
    NOTE: When tightening the screw of the hose band (F), align the edge of the hose band (G) within the range of the marks (H) painted on the hose band.
