IMT Actuator Replacement

  1. Remove the engine cover (see step 1 on IGNITION COIL REMOVAL/INSTALLATION ).
  2. Disconnect the IMT actuator connector (A).

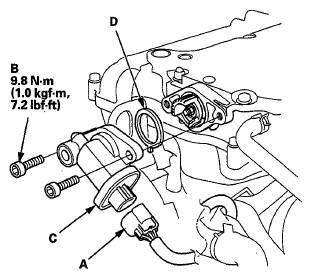

    Fig 1: IMT Actuator Connector, Bolts, IMT Actuator & O-Ring With Torque Specifications
    G05961474Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (B) and the IMT actuator (C).
  4. Install the parts in the reverse order of removal with a new O-ring (D).
