CMP Sensor Replacement

Remove the timing belt (see TIMING BELT REMOVAL ).
Remove the front camshaft pulley (CMP sensor pulse plate) (A).

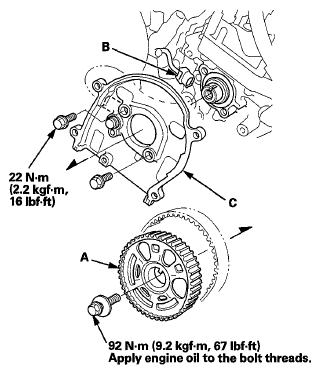

Fig 1: CMP Sensor Connector, CMP Sensor & Front Camshaft Pulley With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the CMP sensor connector (B), then remove the back cover (C).
Remove the CMP sensor (A) from the back cover.

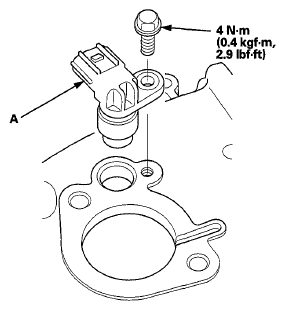

Fig 2: Identifying CMP Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal. Install the timing belt (see TIMING BELT INSTALLATION ).
Do the CKP pattern clear/CKP pattern learn procedure (see CKP PATTERN CLEAR/CKP PATTERN LEARN ).
