FTP Sensor Replacement

  1. Remove the bolt (A), and disconnect the EVAP canister vent shut valve 2P connector (B), the FTP sensor 3P connector (C), and the hoses (D).

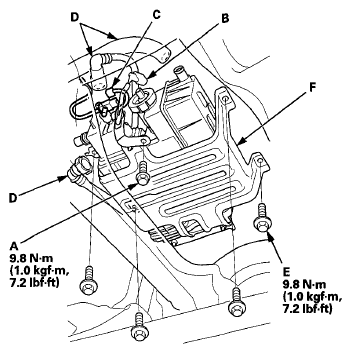

    Fig 1: Bolts, EVAP Canister Vent Shut Valve Connector And FTP Sensor Connector With Torque Specifications
    G07341848Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the bolts (E), and move the EVAP canister assembly (F) to the rear.
  3. Remove the FTP sensor (A).

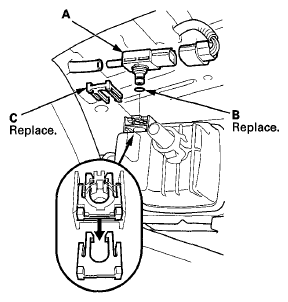

    Fig 2: Identifying FTP Sensor, O-Ring And Retainer
    G07341849Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the parts in the reverse order of removal with a new O-ring (B) and a new retainer (C).
