Power Relay Test: Notes
Special Tools Required

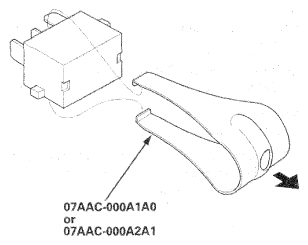

Relay Puller 07AAC-000A1A0 or 07AAC-000A2A1
Relay Socket Extension (4 Pin) 07AGK-000A1A0
Relay Socket Extension (5 Pin) 07AGK-000A2A0
Use this chart to identify the type of relay, then do the test listed for it.
SPECIAL TOOLS DESCRIPTION CHART
| Relay | Test | ||
|---|---|---|---|
| A/C compressor clutch relay | Normally-open four-terminal type | ||
| A/C condenser fan relay | |||
| A/F sensor relay | |||
| Blower motor relay | |||
| ETCS control relay | |||
| Fog light relay | |||
| Horn relay | |||
| Ignition coil relay | |||
| Lighting relay 1 | |||
| Lighting relay 2 | |||
| MCM relay 1 | |||
| MCM relay 2 | |||
| PGM-FI main relay 1 (Fl MAIN) | |||
| PGM-FI main relay 2 (FUEL PUMP) | |||
| Power window relay (P/W) | |||
| Radiator fan relay | |||
| Rear window defogger relay | |||
| Starter cut relay (ST CUT) | |||
| Driver's seat heater relay (high)* | |||
| Passenger's seat heater relay (high)* | |||
| Driver's door unlock relay* | Five-terminal type | ||
| Driver's seat heater relay (low)* | |||
| Passenger's seat heater relay (low)* | |||
| Fan control relay | |||
| Hatch release actuator relay | |||
|
|||
