MAF Sensor/IAT Sensor Replacement

  1. Disconnect the MAF sensor/IAT sensor connector (A).

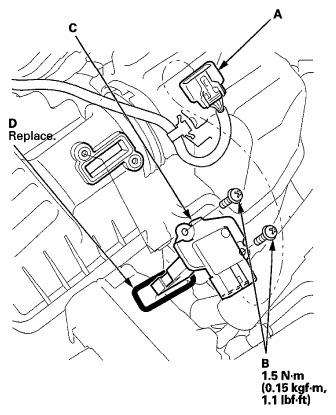

    Fig 1: MAF Sensor/IAT Sensor Connector, Screw And Gasket With Torque Specifications
    G06949923Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the screws (B).
  3. Remove the MAF sensor/IAT sensor (C).
  4. Install the parts in the reverse order of removal with a new gasket (D).
