Wheel Speed Sensor Replacement: Front

  1. Turn the ignition switch to LOCK (0).
  2. Remove the grommet (A), then disconnect the wheel speed sensor connector (B).

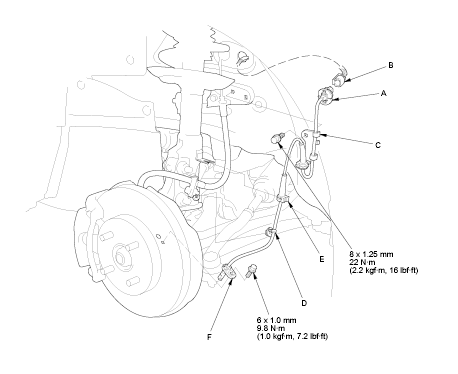

    Fig 1: Identifying Wheel Speed Sensor Replacement Components (Front) With Torque Specifications
    G00492823Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bracket (C), the clip (D), and the wire guide grommet (E).
  4. Remove the bolt and the wheel speed sensor (F).
  5. Install the wheel speed sensor in the reverse order of removal, and note these items:
    • Do not twist the sensor wires.
    • If the wheel speed sensor comes in contact with the wheel bearing, it is faulty.
    • Make sure the grommet is installed properly.
