Dashboard
Relays And Control Unit Locations: Dashboard

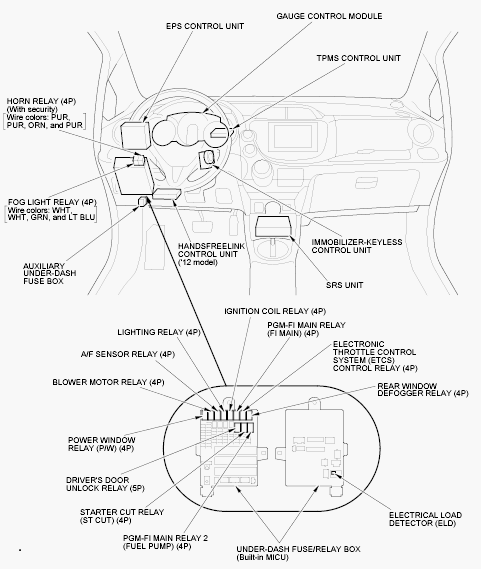

Fig 1: Identifying Dashboard Relay & Control Unit Replacement Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.

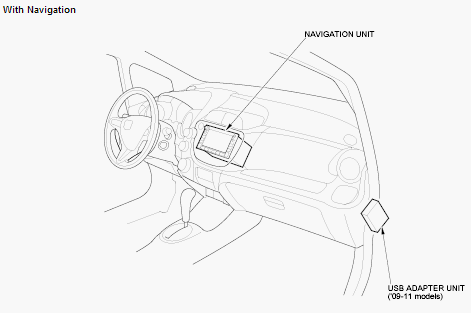

With Navigation System
Fig 2: Identifying Dashboard Relay & Control Unit Replacement Components (With Navigation System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

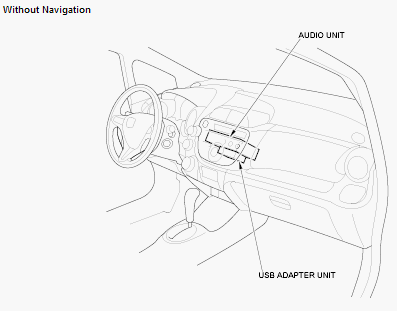

Without Navigation System
Fig 3: Identifying Dashboard Relay & Control Unit Replacement Components (Without Navigation System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
