Honda
>>
2012
>>
Fit Base, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Relays And Control Unit Locations
>>
Engine Compartment
Engine Compartment

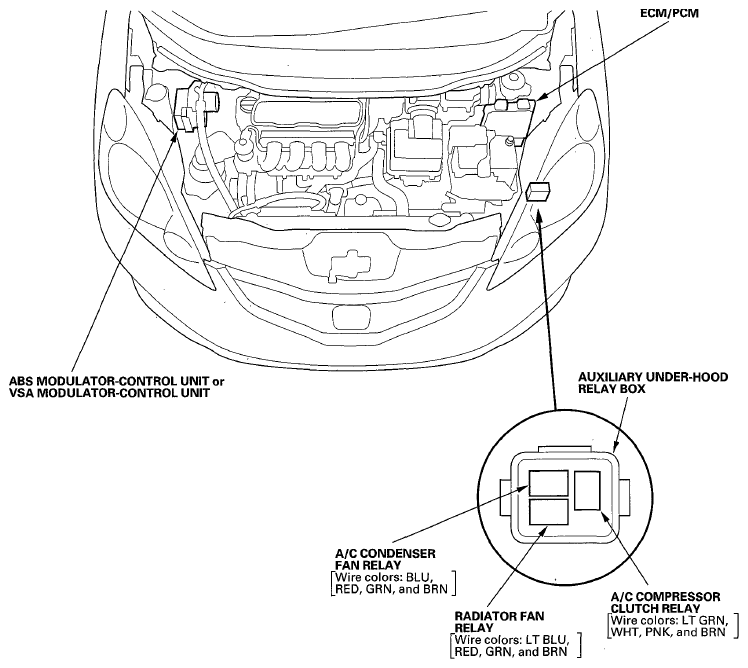

Fig 1: Identifying Engine Compartment Relay & Control Unit Replacement Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
