Honda
>>
2012
>>
Fit Base, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System
>>
Alternator Overhaul
>>
Exploded View
Exploded View

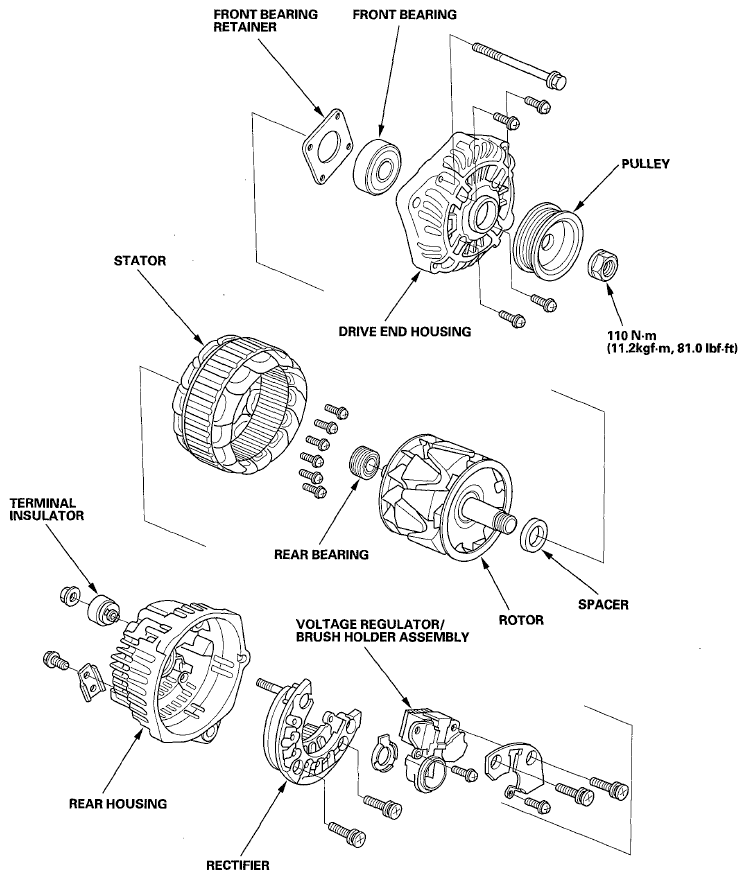

Fig 1: Identifying Alternator Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
