FTP Sensor Replacement

  1. Remove the EVAP canister (see EVAP CANISTER REPLACEMENT  ).
  2. Disconnect the FTP sensor connector (A).

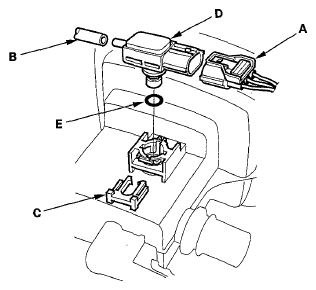

    Fig 1: Identifying FTP Sensor Connector, Hose, Retainer & FTP Sensor
    G05953277Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the hose (B), remove the retainer (C), and remove the FTP sensor (D).
  4. Install the parts in the reverse order of removal with a new O-ring (E).
