Component Location Index

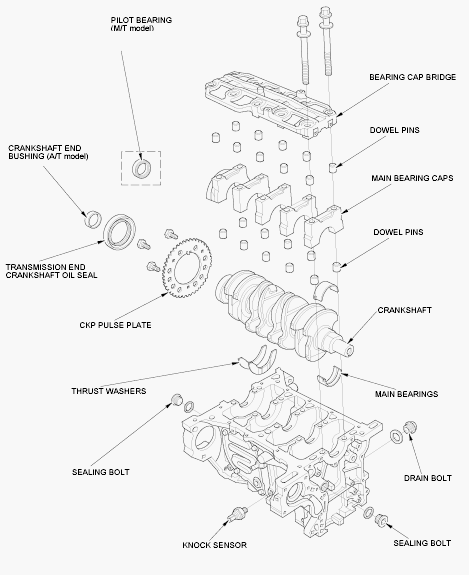

Fig 1: Identifying Engine Block Replacement Components (1 Of 2)
G05952575Courtesy of AMERICAN HONDA MOTOR CO., INC.

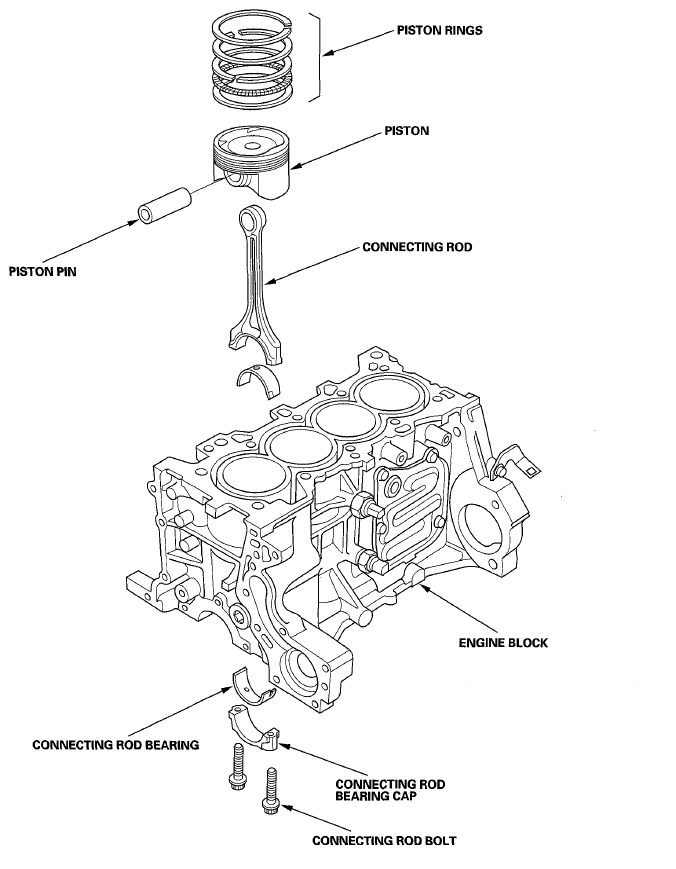

Fig 2: Identifying Engine Block Replacement Components (2 Of 2)
G05952577Courtesy of AMERICAN HONDA MOTOR CO., INC.
