Drain Bolt/Sealing Bolt Installation

NOTE: When installing the drain bolt (A), always use a new washer. When installing the sealing bolt(s) (B), always use a new bolt(s) and washer(s) (C).

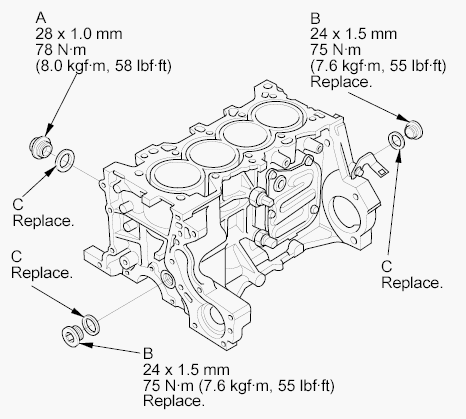

Fig 1: Drain Bolt & Sealing Bolt With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
