Component Location Index

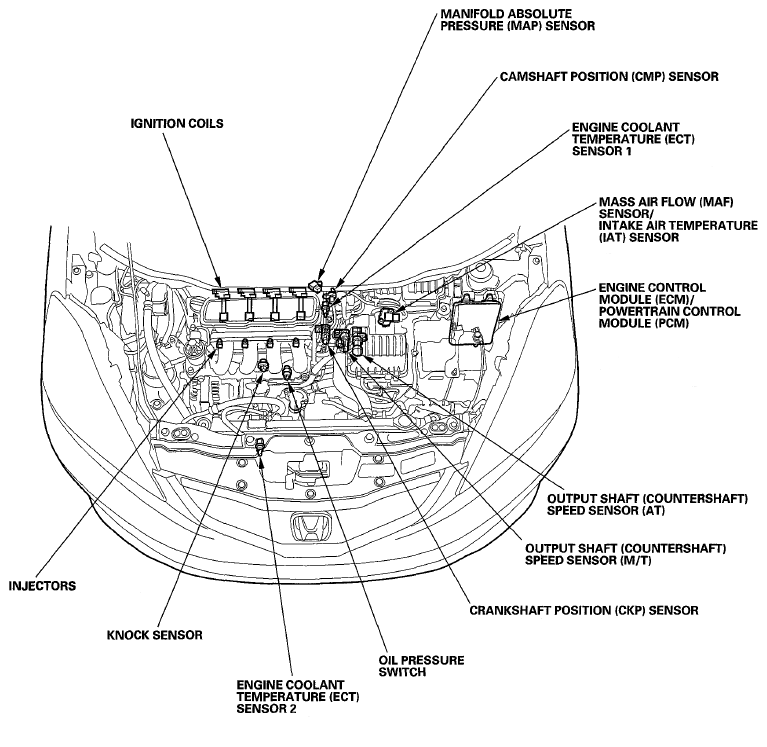

Fig 1: Identifying PGM-FI System Replacement Components (1 Of 3)
G05952833Courtesy of AMERICAN HONDA MOTOR CO., INC.

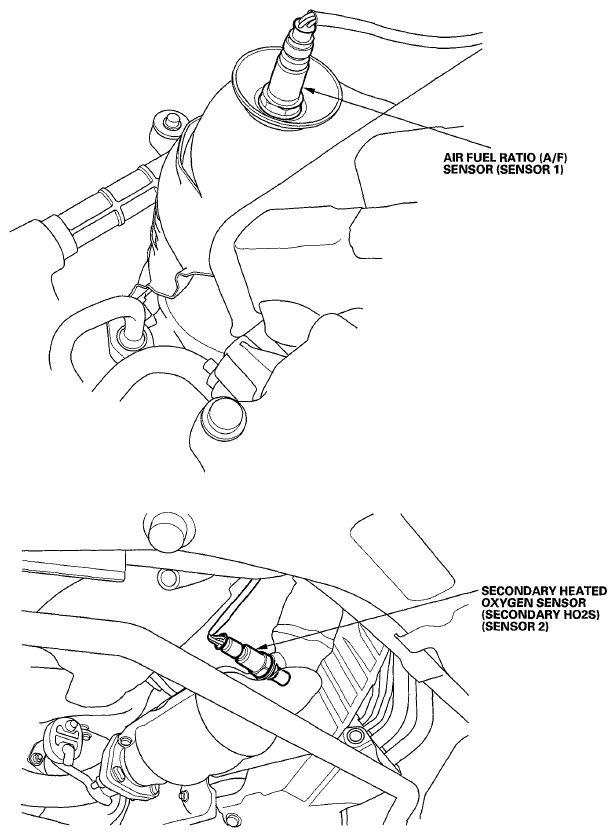

Fig 2: Identifying PGM-FI System Replacement Components (2 Of 3)
G05952834Courtesy of AMERICAN HONDA MOTOR CO., INC.

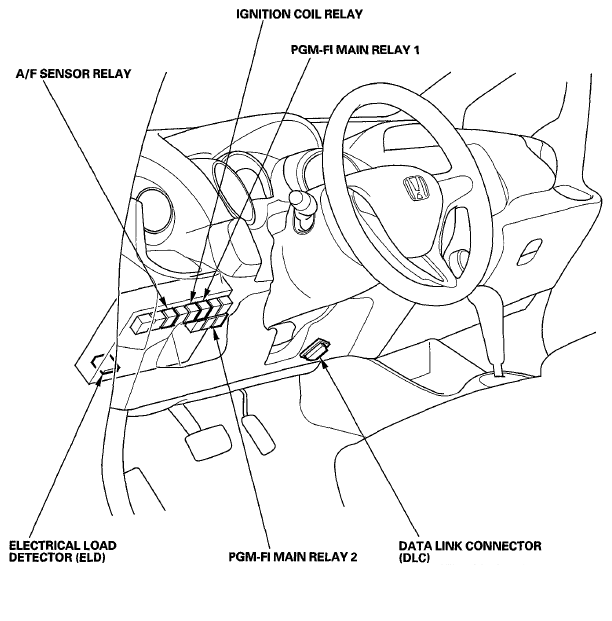

Fig 3: Identifying PGM-FI System Replacement Components (3 Of 3)
G05952835Courtesy of AMERICAN HONDA MOTOR CO., INC.
