Audio Remote Switch Replacement

SRS components are located in this area. Review the SRS component location (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in the SRS article before doing repairs or service.

1. Remove the steering wheel (see STEERING WHEEL REMOVAL ).
2. Remove the screws, and steering wheel rear cover (A).

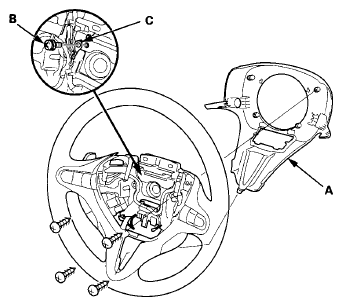

   Fig 1: Identifying Steering Wheel Rear Cover, Screw And Earth Terminal

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. '11 model, remove the screw (B), and earth terminal (C).
4. Remove the paddle shifter + (upshift switch) and paddle shifter - (downshift switch) (see PADDLE SHIFTER + (UPSHIFT SWITCH) OR PADDLE SHIFTER - (DOWNSHIFT SWITCH) REPLACEMENT ).
5. Remove the screws and the steering wheel trim (A).

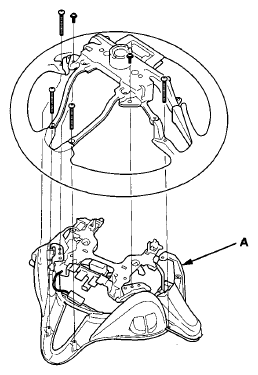

   Fig 2: Identifying Screws And Steering Wheel Trim

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Disconnect the connectors, and remove the harness guide (A).

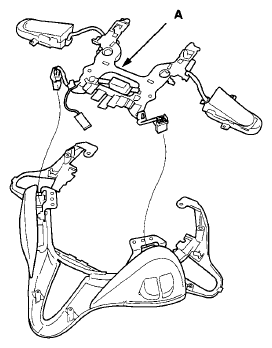

   Fig 3: Identifying Connectors And Harness Guide

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Remove the audio remote switch (A).

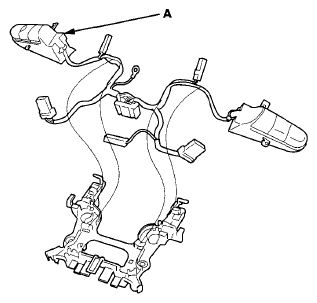

   Fig 4: Identifying Audio Remote Switch

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Install the audio remote switch in the reverse order of removal.
