GA-Net Bus Configuration
The GA-Net bus passes audio and navigation commands throughout the navigation and audio components.

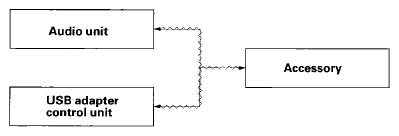

These commands include navigation touch screen and hard button signals. Because the entire bus is daisy chained between components (see Fig 1), any open or short in the GA-Net bus harness will cause any or all of these functions to become inoperative. The addition of any audio accessory must maintain the continuity of the GA-Net bus by installing the Y cable included with the accessory kit.
