Voice Control Switch Test

SRS components are located in this area. Review the SRS component location (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in the SRS article before doing repairs or service.

1. Remove the HFL-navigation voice control switch (see VOICE CONTROL SWITCH REPLACEMENT ).

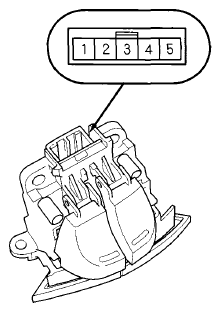

   Fig 1: Identifying HFL-Navigation Voice Control Switch

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Measure the resistance between terminals No. 3 and No. 4 in each switch position according to the table.

   Position	Resistance
   No button pressed	About 10 k Ω
   Navigation TALK button	About 2.2 kΩ
   Navigation BACK button	About 652 Ω

3. If the resistance is not as specified, replace the HFL-navigation voice control switch (see VOICE CONTROL SWITCH REPLACEMENT ).
