Exploded View

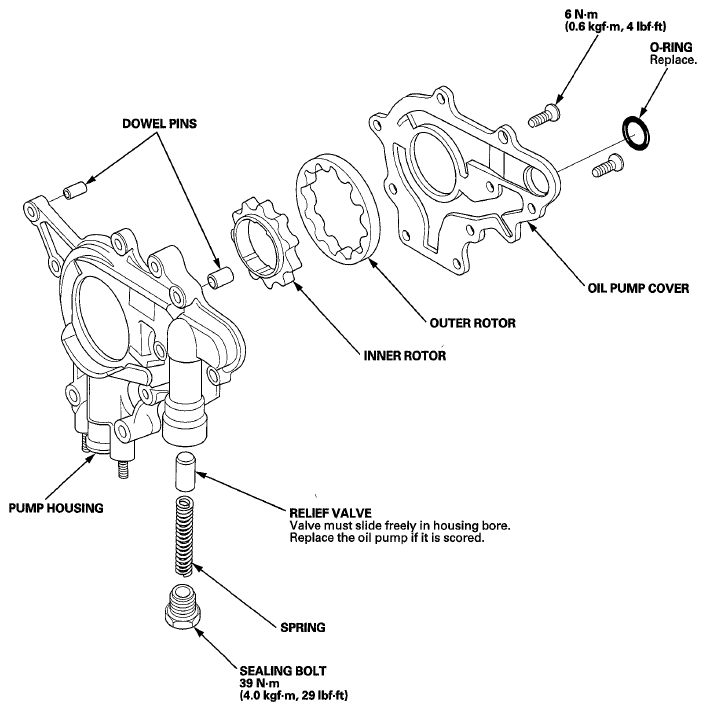

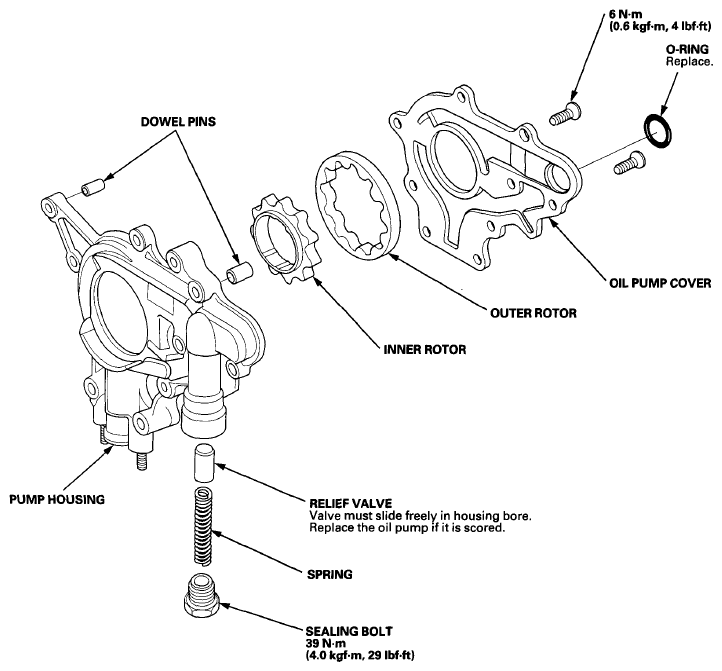

Fig 1: Exploded View Of Oil Pump With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Support Eyelet 07AAK-SNAA600
• Engine Support Hanger, A and Reds AAR-T1256*

*Available through the Honda Tool and Equipment Program 888-424-6857
