Home >> Honda >> 2012 >> Insight Base >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Block >> Block Cover Removal and Installation

Block Cover Removal and Installation

  1. Remove the block cover (A).

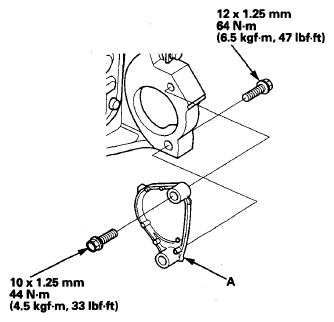

    Fig 1: Block Cover And Mounting Bolts With Torque Specifications
    G08092025Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the block cover in the reverse order of removal.
