CKP Pulse Plate Replacement

  1. Remove the crankshaft from the engine block (see CRANKSHAFT AND PISTON REMOVAL ).
  2. Remove the CKP pulse plate (A).
    NOTE: Be careful not to damage the journals and the CKP pulse plate.

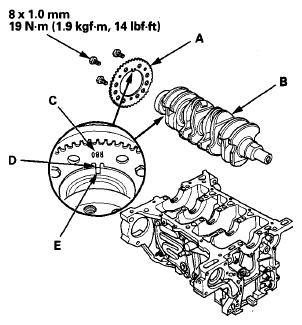

    Fig 1: CKP Pulse Plate, Crankshaft, Tab And Crankshaft Groove With Torque Specifications
    G08092014Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the CKP pulse plate on the crankshaft (B); face the marked side (C) toward the transmission, and align the tab (D) on the CKP pulse plate with the groove (E) on the crankshaft.
  4. Install the crankshaft (see CRANKSHAFT INSTALLATION ).
