Oil Pan Removal

  1. If the engine is already out of the vehicle, go to step  7.
  2. Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).
  3. Drain the engine oil (see ENGINE OIL REPLACEMENT ).
  4. Remove the drive belt (see DRIVE BELT REPLACEMENT ).
  5. Remove the driveshaft heat shield (see step 33 on ENGINE REMOVAL ).
  6. Remove the A/C compressor without disconnecting the A/C hoses (see step 35 on ENGINE REMOVAL ).
  7. Remove the dipstick, then remove the dipstick tube.
    Fig 1: Identifying Dipstick Tube
    G08091963Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Remove the CKP sensor cover (A), then disconnect the CKP sensor connector (B).
    Fig 2: Identifying CKP Sensor Cover And Connector
    G08091964Courtesy of AMERICAN HONDA MOTOR CO., INC.

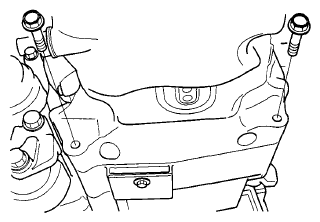

  9. Remove the transmission mounting bolts.
    Fig 3: Identifying Transmission Mounting Bolts
    G08091965Courtesy of AMERICAN HONDA MOTOR CO., INC.

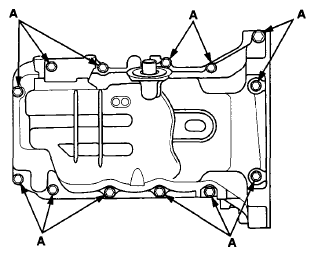

  10. Remove the bolts (A) securing the oil pan.
    Fig 4: Identifying Oil Pan Bolts
    G08091966Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Using a flat blade screwdriver, separate the oil pan from the engine block in the places shown.
    Fig 5: Identifying Oil Pan Separating Areas From Engine Block
    G08091967Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Remove the oil pan.
    NOTE: Lower the oil pan carefully so as not to damage the IMA motor rotor position sensor.
