EGR Pipe Removal and Installation: Removal

  1. Remove the cowl cover and the under-cowl panel (see COWL COVER REPLACEMENT ).
  2. Remove the bolts (A) and the nuts (B).

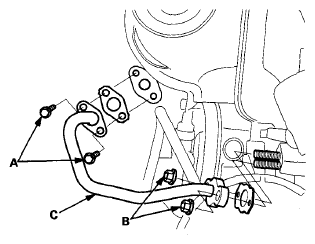

    Fig 1: Identifying EGR Pipe, Nuts And Bolts
    G08092609Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the EGR pipe (C).
