IMA System

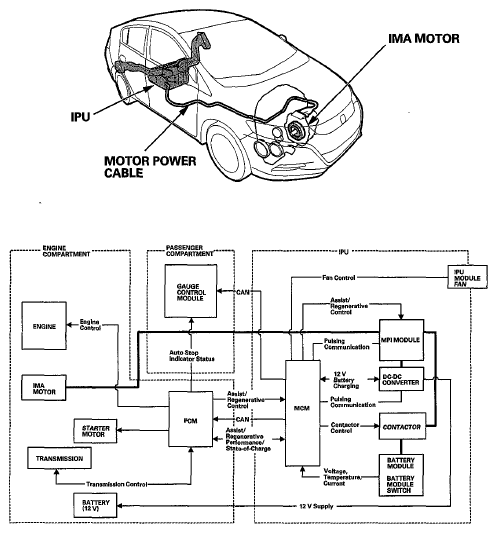

The IMA (integrated motor assisted) system is a highly-efficient parallel hybrid drive system with a main power unit (gasoline engine) and an assist unit (electric motor).
The engine is an in-line, 4-cylinder, 8-valve power plant with a displacement of 82 cu. in (1.339 liters). To reduce fuel use, the engine is equipped with i-DSI and a valve pause system that reduces engine pumping loss and increases the generation of electric energy during deceleration.
The IMA motor, directly connected to the engine crankshaft, functions as a generator during deceleration, an engine starter, and a motor to assist the engine that drives the wheels.
The IMA system contains a 100 V DC battery, a control system, and related parts. For safety, the intelligent power unit (IPU) is located under the cargo compartment.
The IMA system improves fuel economy by capturing and storing energy during deceleration.
