Junction Board: Notes
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

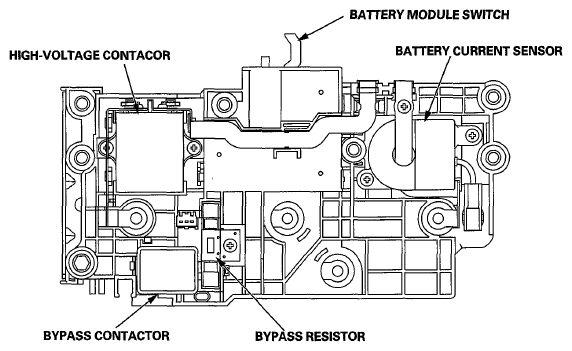

The junction board is mounted on the battery module, and it distributes high voltage energy within the IMA system. The junction board consists of a high-voltage contactor, a bypass contactor, a bypass resistor, a battery current sensor, a fuse and a battery module switch.
