Audio Remote Switch Test

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component location (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in the SRS section before doing repairs or service.

Remove the driver's airbag assembly (see DRIVER'S AIRBAG REPLACEMENT ).
Disconnect the cable reel 20P connector (A).

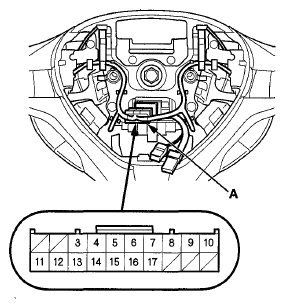

Fig 1: Identifying Cable Reel 20P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Measure the resistance between the terminals No. 9 and No. 10 in each switch position according to the table.

RESISTANCE CHART

Position	Resistance
No button pressed	About 10 kΩ
MODE	About 3.7 kΩ
CH (+)	About 1.7 kΩ
CH (-)	About 775 Ω
↑ (VOL.UP)	About 357 Ω
↓ (VOL.DOWN)	About 100 Ω

If the resistance is not as specified, replace the audio remote switch (see AUDIO REMOTE SWITCH REPLACEMENT ).
