USB Adapter Unit Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Remove the center console armrest (see CENTER CONSOLE ARMREST REPLACEMENT ).
  3. Remove the console box (see CENTER CONSOLE ARMREST REPLACEMENT ).

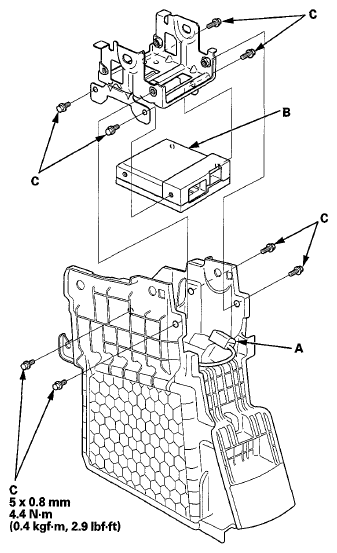

    Fig 1: USB Adapter Unit And Mounting Bolts With Torque Specifications
    G06431897Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the connectors (A) from the USB adapter unit(B).
  5. Remove the mounting bolts (C) and the USB adapter unit.
  6. Install the USB adapter unit in the reverse order of removal.
