IPU Module Fan Replacement

  1. Remove the right cargo area side trim panel (see TRIM REMOVAL/INSTALLATION - CARGO AREAS ).
  2. Disconnect the IPU module fan connector (A).

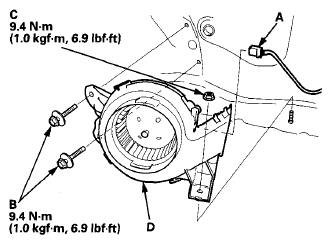

    Fig 1: IPU Module Fan, Connector, Bolts And Nuts With Torque Specifications
    G08092964Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (B), the nut (C), and the IPU module fan (D).
  4. Install the parts in the reverse order of removal.
