Component Location Index
>>
Five-position Transmission
Five-position Transmission

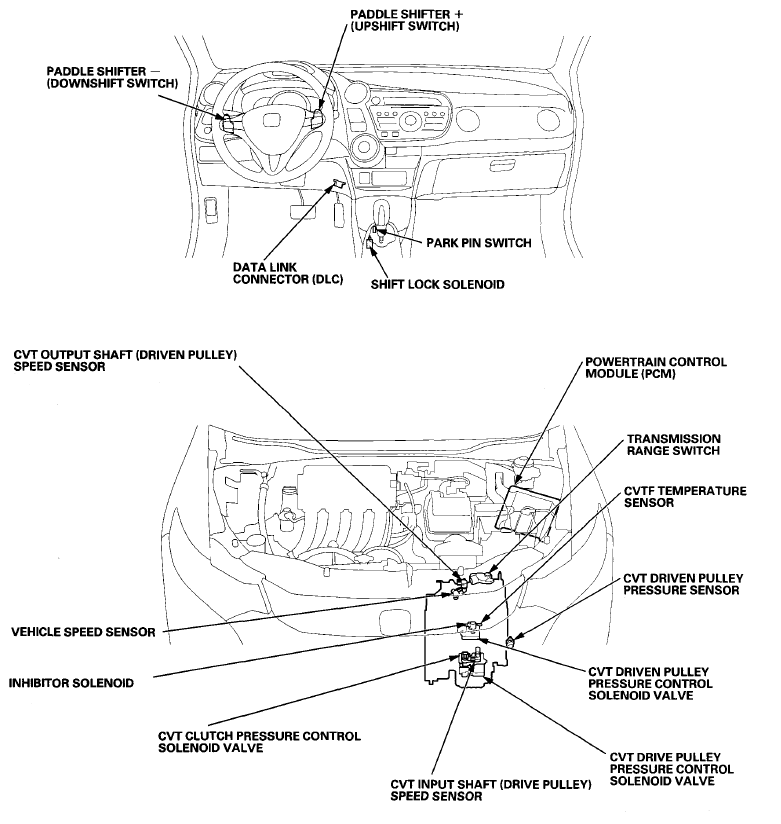

Fig 1: Identifying CVT Component Location (Five-Position Transmission)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
