Driven Pulley Pressure Sensor Removal/Installation

Remove the CVT driven pulley pressure sensor (A).

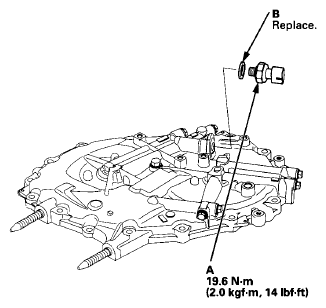

Fig 1: CVT Driven Pulley Pressure Sensor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the new CVT driven pulley pressure sensor and a new sealing washer (B), and tighten the sensor.
