PCM CVT Control System Electrical Connections-Five-position Transmission

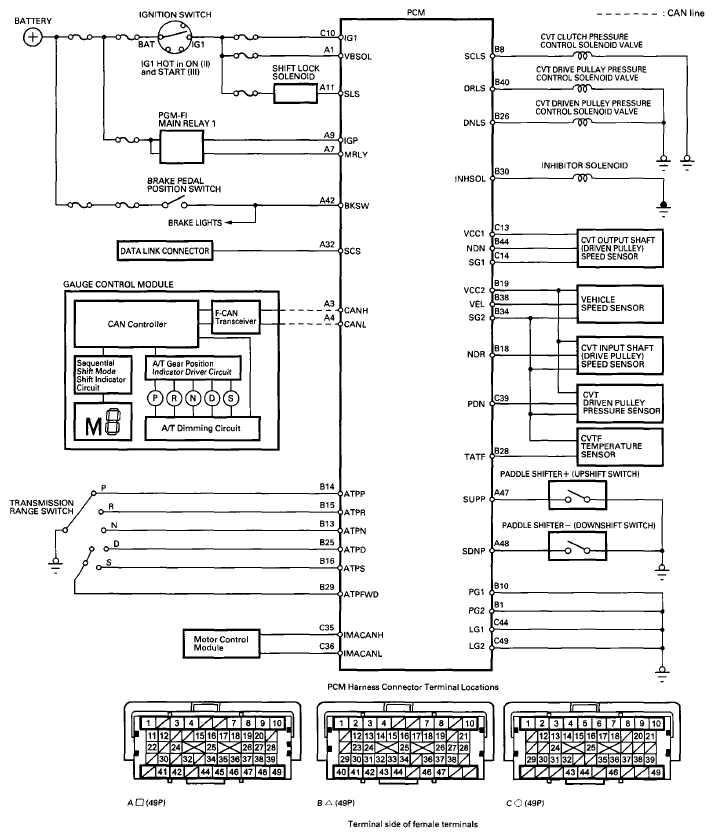

Fig 1: PCM CVT Control System Electrical Connections-Five-Position Transmission Circuit Diagram
G08093027Courtesy of AMERICAN HONDA MOTOR CO., INC.
