N Position

Engine power transmitted from the flywheel drives the input shaft, but hydraulic pressure is not applied to the forward clutch and the reverse brake. Power is not transmitted to the drive pulley shaft. Also hydraulic pressure is not applied to the start clutch,

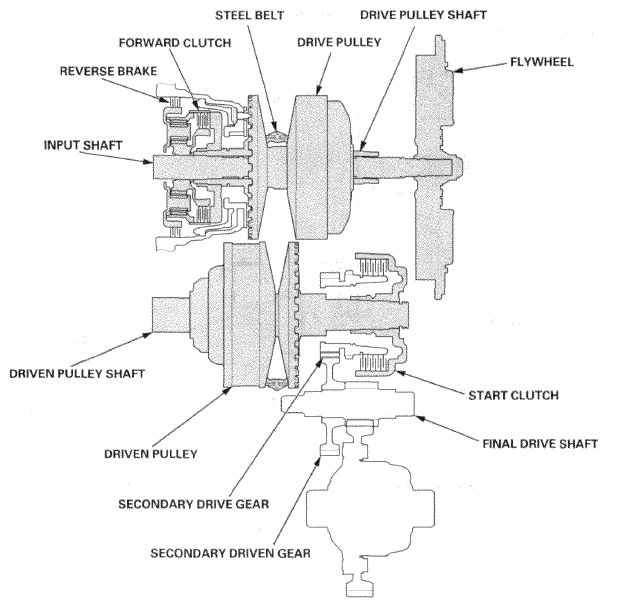

Fig 1: Power Flow Diagram (N Position)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
