Rear Power Window Motor Replacement

  1. Remove the rear power window regulator (see SLIDING DOOR GLASS AND REGULATOR REPLACEMENT ).
  2. Remove the three bolts (A), and separate the rear power window motor (B).

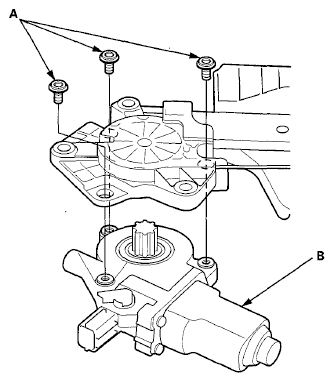

    Fig 1: Identifying Rear Power Window Motor With Mounting Bolts
    G06969881Courtesy of AMERICAN HONDA MOTOR CO.,INC.
    NOTE: The illustration shows with left sliding door.
  3. Install the motor in the reverse order of removal.
