Home >> Honda >> 2012 >> Odyssey EX >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Rear Power Window Switch Replacement

Rear Power Window Switch Replacement

  1. Remove the sliding door panel (see SLIDING DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 14P connector (A) from the rear power window switch (B).

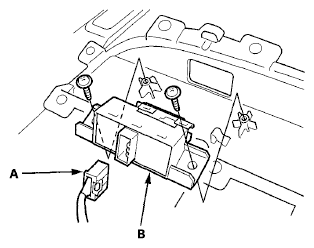

    Fig 1: Identifying 14P Connector With Rear Power Window Switch
    G06969888Courtesy of AMERICAN HONDA MOTOR CO.,INC.
  3. Remove the two screws and the rear power window switch.
  4. Install the switch in the reverse order of removal.
