Electrical Compass Unit Removal/Installation

  1. Remove the headliner.
  2. Remove the screw, then pull out the electrical compass unit (A).

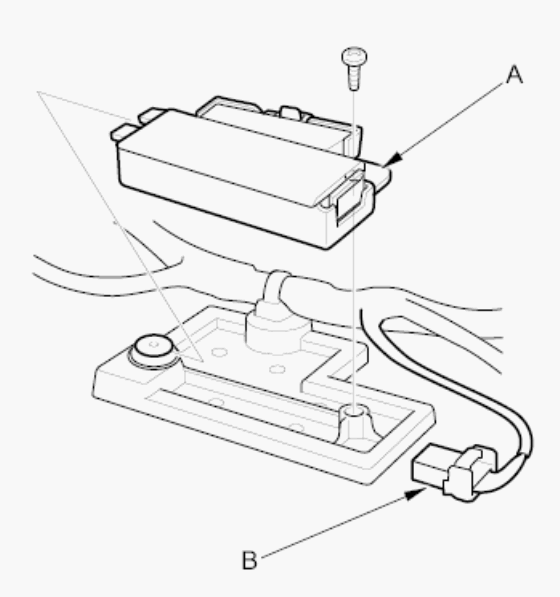

    Fig 1: Identifying Screw & Electrical Compass Unit (A)
    G00523819Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connector (B), and remove the electrical compass unit.
  4. Install the electrical compass unit in the reverse order of removal.
    NOTE: If you replaced the electrical compass unit, set the compass zone (see Electrical Compass Zone Selection and Calibration ).
