EGR Valve Replacement

  1. Remove the engine cover (see step 7 on ENGINE REMOVAL ).
  2. Disconnect the EGR valve 5P connector (A).

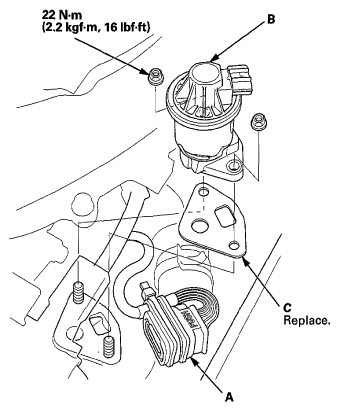

    Fig 1: Identifying EGR Replacement Components With Torque Specifications
    G06966751Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the EGR valve (B).
  4. Install the parts in the reverse order of removal with a new gasket (C).
