Component Location Index

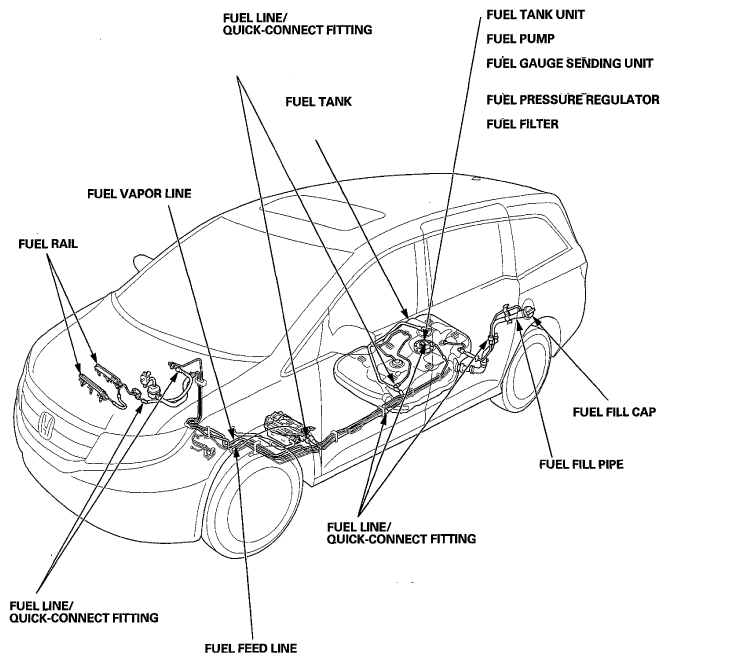

Fig 1: Fuel Supply System Component Location
G06966636Courtesy of AMERICAN HONDA MOTOR CO., INC.

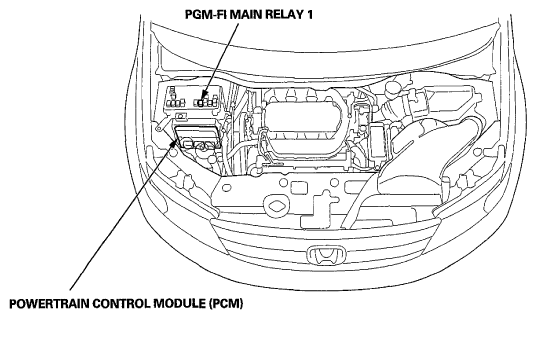

Fig 2: Identifying PCM And PGM-FI Main Relay 1
G06966637Courtesy of AMERICAN HONDA MOTOR CO., INC.

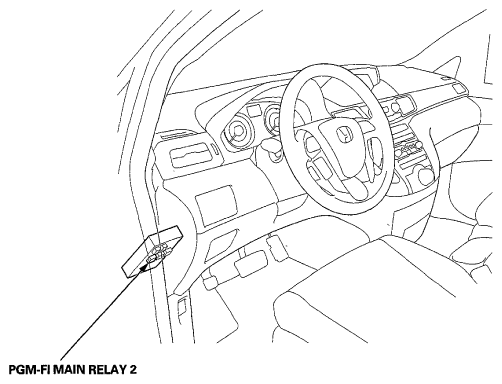

Fig 3: Identifying PGM-FI Main Relay 2
G06966638Courtesy of AMERICAN HONDA MOTOR CO., INC.
